Περιγραφή
Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- Intel

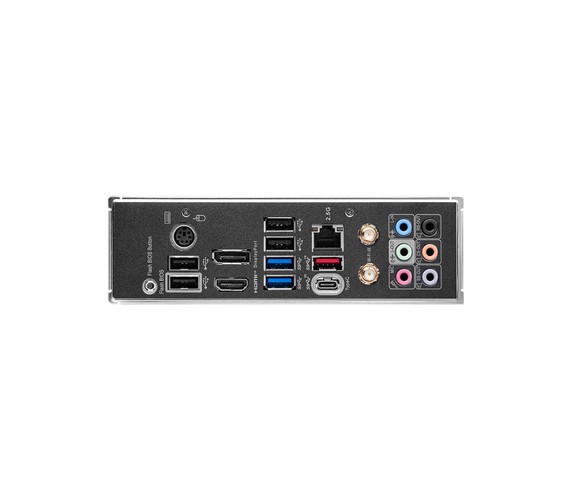

Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 1
Design
Product colour:
- Black
Expansion slots
Number of M.2 (M) slots:
- 4
PCI slots:
- 4
Graphics
On-board graphics card:
- No
Internal I/O
Front panel audio connector:
- Yes
Front panel connector:
- Yes
RGB LED pin header:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC:
- No
Maximum internal memory:
- 192 GB
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 7200 MHz
Supported memory clock speeds:
- 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory types:
- DDR5-SDRAM
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.3
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
Compatible processor series:
- Intel® Celeron®, Intel® Pentium® Gold
Motherboard chipset:
- Intel Z790
RAID levels:
- 0, 1, 5, 10
Supported processor sockets:
- LGA 1700
Ports & interfaces
Bluetooth:
- Yes
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Number of SATA III connectors:
- 6
S/PDIF out port:
- Yes
USB 2.0 ports quantity:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- Intel
Processor socket:
- LGA 1700
Storage
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, PCI Express
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Weight & dimensions
Depth:
- 304.8 mm
Width:
- 243.8 mm
