Περιγραφή
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE

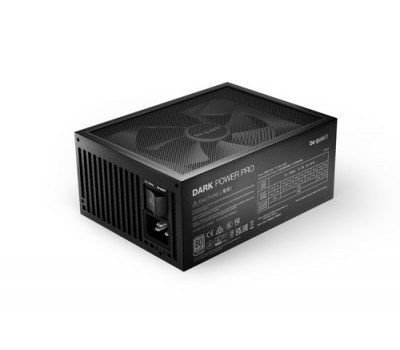

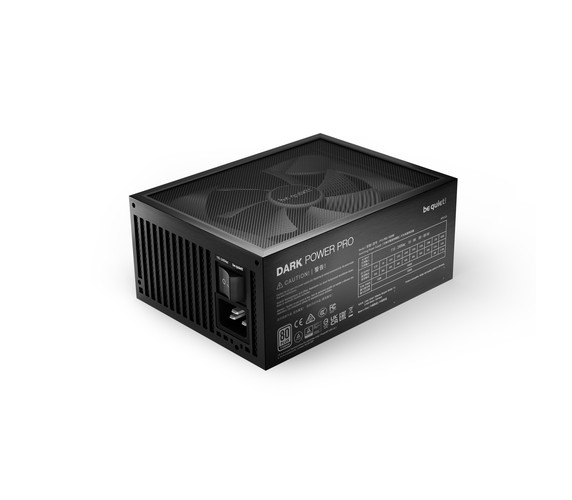

The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Cooling type:
- Active

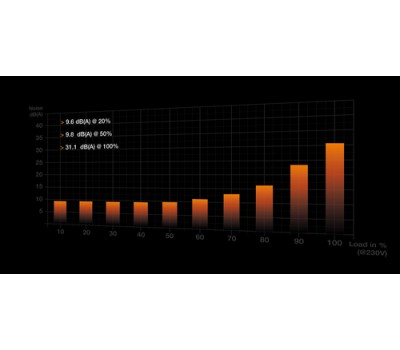

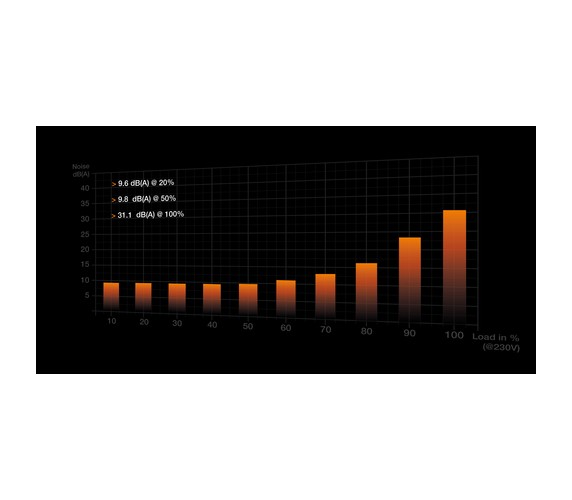

Noise level:
- 31.1 dB
Certificates
80 PLUS certification:
- 80 PLUS Titanium
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Internal I/O
EPS power connector (8-pin):
- Yes
Lamps
Total power:
- 1600 W
Logistics data
Products per shipping (inner) case:
- 2 pc(s)
Shipping (inner) case height:
- 28.3 cm
Shipping (inner) case length:
- 44 cm
Shipping (inner) case net weight:
- 14.6 kg
Shipping (inner) case width:
- 32.5 cm
Other features
PCI Express connector:
- Yes
Packaging content
Cable tie(s) included:
- Yes
Packaging data
Cables included:
- CPU, PCIe, Peripheral (Molex), SATA
Performance
ATX version:
- 3.0
EPS version:
- 2.92
Fan diameter:
- 13.5 cm
Mean time between failures (MTBF):
- 100000 h
Power protection features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
ATX power connector (20+4 pin):
- Yes
Cabling type:
- Fully-Modular
CPU power cable length:
- 70 cm
EPS power connector (4+4 pin):
- Yes
Motherboard power cable length:
- 60 cm
Motherboard power connector:
- 20+4 pin ATX
Number of PATA power connectors:
- 5
Number of SATA power connectors:
- 16
PCI Express power cable length:
- 60 cm
PCI Express power connectors (6+2 pin):
- 6
Peripheral (Molex) power cable length:
- 600,750,900,1050 mm
SATA power cable length:
- 500,600,750,800,900,950,1050 mm
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 115 - 240 V
Combined power (+12V):
- 1600 W
Combined power (+3.3V):
- 150 W
Combined power (+5V):
- 150 W
Combined power (+5Vsb):
- 17.5 W
Combined power (-12V):
- 6 W
Efficiency:
- 94.5%
Hold time:
- 18 ms
Input current:
- 15 - 9 A
Max output current (+12V1):
- 40 A
Max output current (+12V2):
- 40 A
Max output current (+12V3):
- 45 A
Max output current (+12V4):
- 45 A
Max output current (+3.3V):
- 25 A
Max output current (+5V):
- 25 A
Max output current (+5Vsb):
- 3.5 A
Max output current (-12V):
- 0.5 A
Peak power:
- 1700 W
Technical details
Bearing technology:
- FDB
Compliance certificates:
- CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Power factor:
- 0.99
Sustainability certificates:
- ENERGY STAR, ErP, Triman
Sustainability compliance:
- Yes
Warranty period:
- 10 year(s)
Weight & dimensions
Depth:
- 200 mm
Height:
- 86 mm
Package depth:
- 417 mm
Package height:
- 152 mm
Package weight:
- 6.9 kg
Package width:
- 253 mm
Weight:
- 2.44 kg
Width:
- 150 mm
