Περιγραφή
Exceptional quiet, superior features

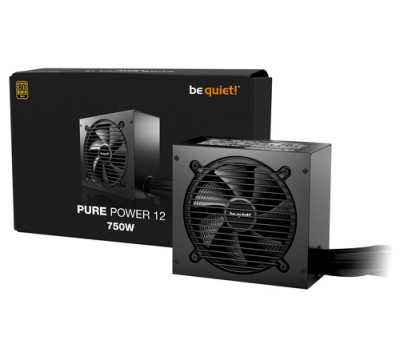

Pure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Pure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Cooling type:
- Active

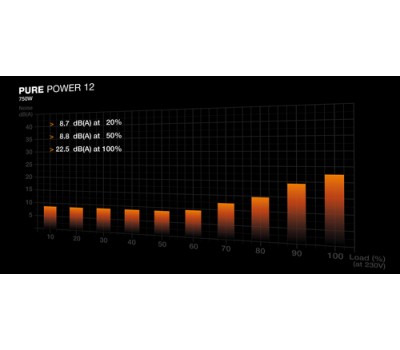

Noise level:
- 22.5 dB
Certificates
80 PLUS certification:
- 80 PLUS Gold
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Ergonomics
On/off switch:
- Yes
Lamps
Total power:
- 750 W
Logistics data
Products per shipping (inner) case:
- 6 pc(s)
Shipping (inner) case height:
- 41.8 cm
Shipping (inner) case length:
- 44 cm
Shipping (inner) case net weight:
- 19.2 kg
Shipping (inner) case width:
- 34.5 cm
Operational conditions
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 0 - 95%
Storage temperature (T-T):
- -20 - 70 °C
Packaging content
Cable tie(s) included:
- Yes
Screws included:
- Yes
Packaging data
Cables included:
- AC
Performance
ATX version:
- 3.1
EPS version:
- 2.92
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 100000 h
Power protection features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
Cabling type:
- Non-Modular
CPU power cable length:
- 60 cm
CPU power connector (4+4 pin):
- Yes
Motherboard power cable length:
- 55 cm
Motherboard power connector:
- 20+4 pin ATX
Number of SATA power connectors:
- 6
PCI Express power cable length:
- 60 cm
PCI Express power connectors (12-pin):
- 1
PCI Express power connectors (6+2 pin):
- 3
Peripheral (Molex) power cable length:
- 800 mm
Peripheral (Molex) power connectors (4-pin):
- 1
SATA power cable length:
- 500,650,800,950 mm
Power
AC input frequency:
- 50/60 Hz
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 750 W
Combined power (+3.3V):
- 120 W
Combined power (+5V):
- 120 W
Combined power (+5Vsb):
- 15 W
Combined power (-12V):
- 3.6 W
Efficiency:
- 90.7%
Hold time:
- 17.04 ms
Max output current (+12V1):
- 62.5 A
Max output current (+3.3V):
- 20 A
Max output current (+5V):
- 20 A
Max output current (+5Vsb):
- 3 A
Max output current (-12V):
- 0.3 A
Maximum input current (@110V):
- 10 A
Maximum input current (@220V):
- 5 A
Number of +12V rail(s):
- 1
Peak power:
- 820 W
Power Factor Correction (PFC) type:
- Active
Technical details
Bearing technology:
- Rifle
Compliance certificates:
- CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Power factor:
- 0.98
Sustainability certificates:
- ENERGY STAR, ErP, Triman
Warranty period:
- 10 year(s)
Weight & dimensions
Depth:
- 160 mm
Height:
- 150 mm
Package depth:
- 320 mm
Package height:
- 210 mm
Package weight:
- 3 kg
Package width:
- 133 mm
Weight:
- 2.6 kg
Width:
- 86 mm
