Περιγραφή
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Cooling type:
- Active

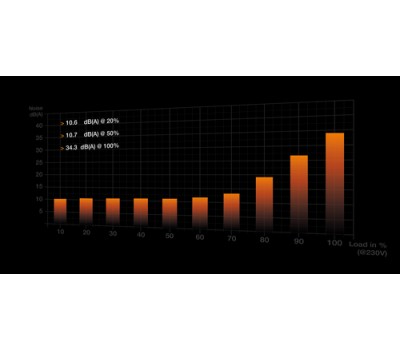

Noise level:
- 34.3 dB
Certificates
80 PLUS certification:
- 80 PLUS Gold
Cooling
Fan speed:
- 0 - 2700 RPM
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Supported motherboard form factors:
- ATX
Ergonomics
On/off switch:
- Yes
Internal I/O
EPS power connector (8-pin):
- Yes
Lamps
Total power:
- 1200 W
Logistics data
Products per shipping (inner) case:
- 4 pc(s)
Shipping (inner) case height:
- 24.3 cm
Shipping (inner) case length:
- 29.8 cm
Shipping (inner) case net weight:
- 12.7 kg
Shipping (inner) case width:
- 42.6 cm
Operational conditions
Operating temperature (T-T):
- 0 - 40 °C
Other features
PCI Express connector:
- Yes
Packaging content
Cable tie(s) included:
- Yes
Packaging data

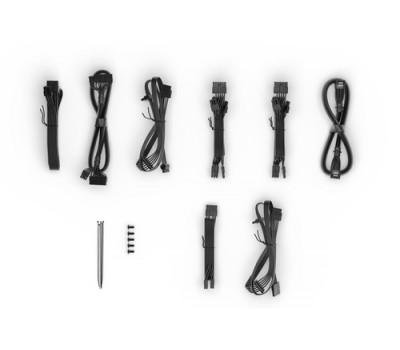

Cables included:
- AC, CPU, PATA, PCIe, SATA
Package type:
- Box
Performance
ATX version:
- 3.0
EPS version:
- 2.92
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 100000 h
Power protection features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Silent mode:
- Yes
Ports & interfaces
ATX power connector (20+4 pin):
- Yes

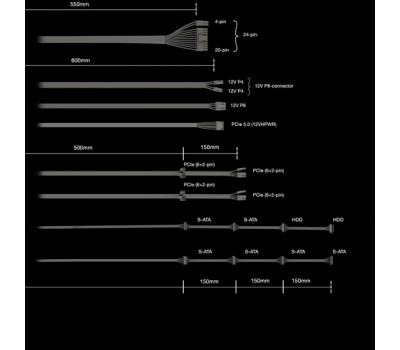

Cabling type:
- Fully-Modular
CPU power cable length:
- 60 cm
CPU power connector (4+4 pin):
- Yes
Motherboard power cable length:
- 55 cm
Motherboard power connector:
- 20+4 pin ATX
Number of PATA power connectors:
- 2
Number of SATA power connectors:
- 6
PCI Express power cable length:
- 60 cm
PCI Express power connectors (6+2 pin):
- 4
Peripheral (Molex) power cable length:
- 800,950 mm
SATA power cable length:
- 500,650,800,950 mm
Power
AC input frequency:
- 50/60 Hz
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 1200 W
Combined power (+3.3V):
- 120 W
Combined power (+5V):
- 120 W
Efficiency:
- 91.5%
Hold time:
- 19 ms
Input current:
- 15 - 7.5 A
Max output current (+12V1):
- 55 A
Max output current (+12V2):
- 50 A
Max output current (+3.3V):
- 22 A
Max output current (+5V):
- 22 A
Max output current (-12V):
- 0.3 A
Peak power:
- 1250 W
Technical details
Bearing technology:
- Rifle
Compliance certificates:
- BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Power factor:
- 0.98
Sustainability certificates:
- ENERGY STAR, ErP, Triman
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 160 mm
Height:
- 86 mm
Package depth:
- 284 mm
Package height:
- 100 mm
Package weight:
- 3.19 kg
Package width:
- 220 mm
Weight:
- 1.92 kg
Width:
- 150 mm
