Περιγραφή

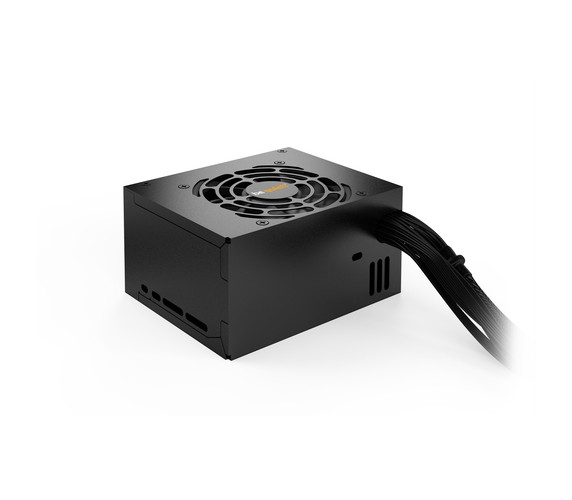

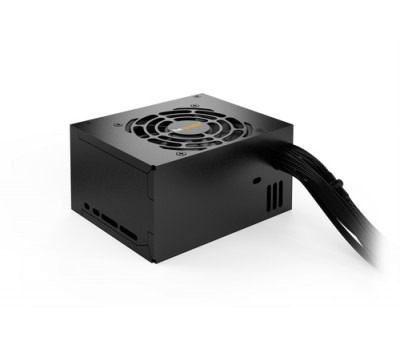

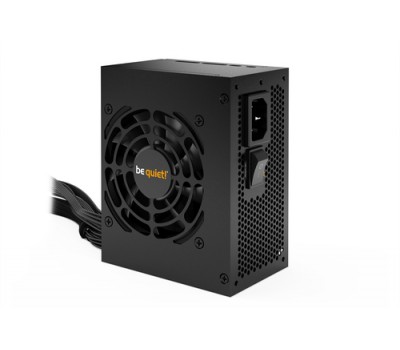

SFX Power 3 450W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Cooling type:
- Active

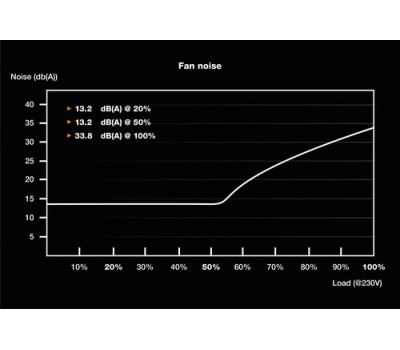

Noise level:
- 33.8 dB
Certificates
80 PLUS certification:
- 80 PLUS Bronze
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Safety:
- CE, CB, TÜV, CU
Ergonomics
On/off switch:
- Yes
Lamps
Total power:
- 450 W
Logistics data
Harmonized System (HS) code:
- 84733020
Products per shipping (inner) case:
- 6 pc(s)
Shipping (inner) case gross weight:
- 8.19 kg
Shipping (inner) case height:
- 23.3 cm
Shipping (inner) case length:
- 45.7 cm
Shipping (inner) case width:
- 26.5 cm
Packaging data
Package type:
- Box
Performance
ATX version:
- 3.42
EPS version:
- 2.92
Fan diameter:
- 8 cm
Mean time between failures (MTBF):
- 100000 h
Power protection features:
- Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor:
- SFX
Purpose:
- PC
Ports & interfaces
Cabling type:
- Non-Modular
EPS power connector (4+4 pin):
- Yes
Floppy disk drive cable length:
- 60 cm
Floppy drive power connector:
- 1
Motherboard power cable length:
- 35 cm
Motherboard power connector:
- 20+4 pin ATX
Number of SATA power connectors:
- 3
PCI Express power cable length:
- 55 cm
PCI Express power connectors (6+2 pin):
- 2
Peripheral (Molex) power cable length:
- 300,450 mm
Peripheral (Molex) power connectors (4-pin):
- 2
SATA power cable length:
- 300,450,600 mm
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 450 W
Combined power (+3.3V):
- 85 W
Combined power (+5V):
- 85 W
Efficiency:
- 85.9%
Hold time:
- 21 ms
Input current:
- 6/2.5 A
Max output current (+12V1):
- 37.5 A
Max output current (+3.3V):
- 16 A
Max output current (+5V):
- 16 A
Max output current (+5Vsb):
- 2.5 A
Max output current (-12V):
- 0.3 A
Maximum input current (@110V):
- 6 A
Maximum input current (@220V):
- 2.5 A
Peak power:
- 500 W
Power Factor Correction (PFC) type:
- Active
Technical details
Bearing technology:
- Rifle
Compliance certificates:
- RoHS, WEEE
Power factor:
- 0.98
Sustainability certificates:
- ENERGY STAR, ErP
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 100 mm
Height:
- 64 mm
Package depth:
- 75 mm
Package height:
- 207 mm
Package weight:
- 1.24 kg
Package width:
- 197 mm
Weight:
- 890 g
Width:
- 125 mm
