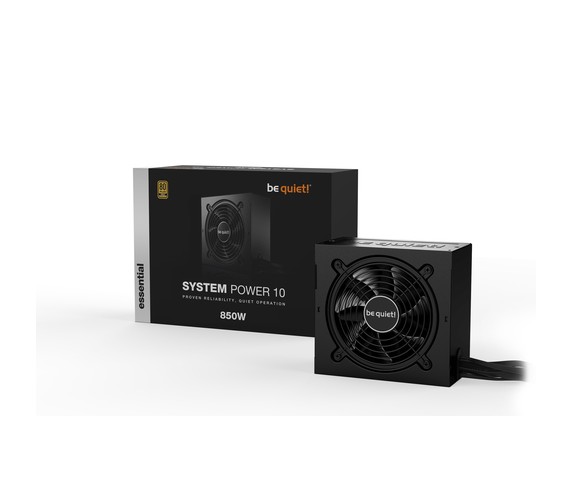

be quiet! System Power 10 power supply unit 850 W 20+4 pin ATX ATX Black (BN330)
Περιγραφή
PROVEN RELIABILITY, QUIET OPERATION
System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
System Power 10 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-CLASS TECHNOLOGIES
Compatibility for all systems
LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
System Power 10 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-CLASS TECHNOLOGIES
Compatibility for all systems
LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Certification:
- CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Cooling type:
- Active
Noise level:
- 30.7 dB
Certificates
80 PLUS certification:
- 80 PLUS Gold
Cooling
Fan speed:
- 0 - 2000 RPM
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Ergonomics
On/off switch:
- Yes
Internal I/O
EPS power connector (8-pin):
- Yes
Lamps
Total power:
- 850 W
Operational conditions
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 0 - 95%
Storage temperature (T-T):
- -20 - 70 °C
Other features
Manual languages:
- German, English, Spanish, French, Polish, Russian
PCI Express connector:
- Yes
Packaging content
Manual:
- Yes
Screws included:
- Yes
Performance
ATX version:
- 2.52
EPS version:
- 2.92
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 100000 h
Noise level (full-load mode, 100%):
- 30.7 dB
Noise level (quiet mode, 50%):
- 10.4 dB
Noise level (silent mode, <30%):
- 10.3 dB
Power protection features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
ATX power connector (20+4 pin):
- Yes
Cabling type:
- Non-Modular
CPU power cable length:
- 60 cm
CPU power connector (4+4 pin):
- Yes
Motherboard power cable length:
- 55 cm
Motherboard power connector:
- 20+4 pin ATX
Number of PATA power connectors:
- 1
Number of SATA power connectors:
- 6
PCI Express power cable length:
- 65 cm
PCI Express power connectors (6+2 pin):
- 4
Peripheral (Molex) power cable length:
- 790 mm
Peripheral (Molex) power connectors (4-pin):
- 1
SATA power cable length:
- 450,550,570,670,690,790 mm
Power
AC input frequency:
- 50 Hz
AC input voltage:
- 200 - 240 V
Combined power (+12V):
- 849.6 W
Combined power (+3.3V):
- 120 W
Combined power (+5V):
- 120 W
Combined power (+5Vsb):
- 15 W
Combined power (-12V):
- 3.6 W
Efficiency:
- 93.4%
Hold time:
- 17 ms
Input current:
- 5 A
Max output current (+12V1):
- 40 A
Max output current (+12V2):
- 36 A
Max output current (+3.3V):
- 22 A
Max output current (+5V):
- 22 A
Max output current (+5Vsb):
- 3 A
Max output current (-12V):
- 0.3 A
Power Factor Correction (PFC) type:
- Active
Power Good signal delay range:
- 100 - 150 ms
Technical details
Bearing technology:
- Rifle
Country of origin:
- Germany
Power factor:
- 0.97
Sustainability certificates:
- CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE
Warranty period:
- 5 year(s)
Weight & dimensions
Depth:
- 86 mm
Height:
- 150 mm
Package depth:
- 300 mm
Package height:
- 100 mm
Package weight:
- 2.6 kg
Package width:
- 220 mm
Weight:
- 2.14 kg
Width:
- 160 mm
