Περιγραφή
INTEL ATX 3.0 & PCIe 5.0 READY!

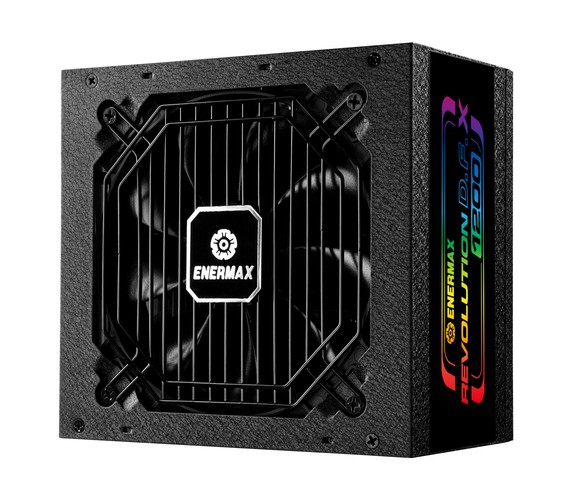

The REVOLUTION D.F. X series meets the Intel ATX 3.0 specification with a native PCIe 5.0 600W 12VHPWR cable providing stable and reliable power to your next generation graphics cards including NVIDIA® GeForce RTX™ 40 Series.
THE MOST ADVANCED PERFORMANCE
The REVOLUTION D.F. X meets all the Intel ATX 3.0 standard including up to 200% power excursion which ensures consistent and reliable power delivery to your graphics cards during intensive gaming or overclocking sessions, and 70% efficiency in 2% loading as well as less than 200ms power-on time.
POWER UP WITH 600W 12VHPWR CABLE
With the arrival of PCIe 5.0, the native 600mm 12VHPWR cable can deliver up to 600W of power from the 12VHPWR connector to the latest graphics cards and avoid overloading with single rail +12V design.
EXTRA CABLE FOR MULTIPLE USAGE
The REVOLUTION D.F. X helps you get ready for the future with another 600mm adaptor cable with dual 8-pin PCIe connectors for PSU side and 12VHPWR connector for GPU side, it allows you to build with flexibility.
HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending under 40mm from the plug downwards.
LIGHT IT UP WITH ARGB SIDE PANEL
To stand out from all the ATX 3.0 power supplies, the REVOLUTION D.F. X comes with a ARGB side panel with built-in 14 lighting modes. It supports synchronization with supported motherboard’s software.
RGB ON/OFF WITH RGB CONTROL BUTTON
The RGB control button next to the power switch allows you to turn it off at night with one push. You can also switch directly between the built-in 14 lighting modes via the RGB control button.
UST-FREE ROTATION TECHNOLOGY ENSURES A STABLE POWER DELIVERY
With ENERMAX’s patented Dust-free Rotation technology, which is an innovative self-cleaning solution that enable the fan to blow away dust upon powering on, it ensures the REVOLUTION D.F. X remains cleanness, prevent any future disruption and ensure a stable power delivery for years.
SUPERIOR EFFICIENCY EXTEND YOUR PC’S LIFESPAN
As the efficiency becomes more and more crucial for the environment, the REVOLUTION D.F. X is 80 PLUS® Gold certified with efficiency over 90% on standard loading, which reduce unnecessary power consumption during operation and effectively save energy.
COMPACT 140MM FOR FRIENDLY INSTALLATION
REVOLUTION D.F. X is one of the smallest high wattage power supplies with a compact 140mm-depth size, providing more options for friendly installation in 99% of mainstream cases.
ENERMAX UNIQUE AIR GUARD FOR BETTER AIRFLOW
The ENERMAX air guard will benefit the cooling performance while decreasing the fan noise with the wider space of air outlet.
The REVOLUTION D.F. X series meets the Intel ATX 3.0 specification with a native PCIe 5.0 600W 12VHPWR cable providing stable and reliable power to your next generation graphics cards including NVIDIA® GeForce RTX™ 40 Series.
THE MOST ADVANCED PERFORMANCE
The REVOLUTION D.F. X meets all the Intel ATX 3.0 standard including up to 200% power excursion which ensures consistent and reliable power delivery to your graphics cards during intensive gaming or overclocking sessions, and 70% efficiency in 2% loading as well as less than 200ms power-on time.
POWER UP WITH 600W 12VHPWR CABLE
With the arrival of PCIe 5.0, the native 600mm 12VHPWR cable can deliver up to 600W of power from the 12VHPWR connector to the latest graphics cards and avoid overloading with single rail +12V design.
EXTRA CABLE FOR MULTIPLE USAGE
The REVOLUTION D.F. X helps you get ready for the future with another 600mm adaptor cable with dual 8-pin PCIe connectors for PSU side and 12VHPWR connector for GPU side, it allows you to build with flexibility.
HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending under 40mm from the plug downwards.
LIGHT IT UP WITH ARGB SIDE PANEL
To stand out from all the ATX 3.0 power supplies, the REVOLUTION D.F. X comes with a ARGB side panel with built-in 14 lighting modes. It supports synchronization with supported motherboard’s software.
RGB ON/OFF WITH RGB CONTROL BUTTON
The RGB control button next to the power switch allows you to turn it off at night with one push. You can also switch directly between the built-in 14 lighting modes via the RGB control button.
UST-FREE ROTATION TECHNOLOGY ENSURES A STABLE POWER DELIVERY
With ENERMAX’s patented Dust-free Rotation technology, which is an innovative self-cleaning solution that enable the fan to blow away dust upon powering on, it ensures the REVOLUTION D.F. X remains cleanness, prevent any future disruption and ensure a stable power delivery for years.
SUPERIOR EFFICIENCY EXTEND YOUR PC’S LIFESPAN
As the efficiency becomes more and more crucial for the environment, the REVOLUTION D.F. X is 80 PLUS® Gold certified with efficiency over 90% on standard loading, which reduce unnecessary power consumption during operation and effectively save energy.
COMPACT 140MM FOR FRIENDLY INSTALLATION
REVOLUTION D.F. X is one of the smallest high wattage power supplies with a compact 140mm-depth size, providing more options for friendly installation in 99% of mainstream cases.
ENERMAX UNIQUE AIR GUARD FOR BETTER AIRFLOW
The ENERMAX air guard will benefit the cooling performance while decreasing the fan noise with the wider space of air outlet.
Χαρακτηριστικά
Κατασκευαστής:
Enermax
Cooling type:
- Active
Certificates
80 PLUS certification:
- 80 PLUS Gold
Design
Product colour:
- Black
Lamps
Total power:
- 1050 W
Operational conditions
Operating relative humidity (H-H):
- 20 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 95%
Storage temperature (T-T):
- -20 - 70 °C
Packaging data
Package type:
- Box
Performance
ATX version:
- 3.0
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 100000 h
Power protection features:
- Over power, Over voltage, Under voltage, Short circuit
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
Cabling type:
- Fully-Modular
CPU power connector (4+4 pin):
- Yes
Floppy disk drive cable length:
- 10 cm
Floppy disk drive connector:
- Yes
Floppy drive power connector:
- 1
Motherboard power cable length:
- 65 cm
Motherboard power connector:
- 20+4 pin ATX
Number of SATA power connectors:
- 12
PCI Express power connectors (6+2 pin):
- 4
Peripheral (Molex) power cable length:
- 150,500 mm
Peripheral (Molex) power connectors (4-pin):
- 6
SATA power cable length:
- 150,450 mm
Power
AC input frequency:
- 47 - 63 Hz
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 1050 W
Combined power (+3.3V):
- 130 W
Combined power (+5V):
- 130 W
Combined power (+5Vsb):
- 15 W
Combined power (-12V):
- 3.6 W
Efficiency:
- 92%
Input current:
- 13-6.5 A
Max output current (+12V):
- 87.5 A
Max output current (+3.3V):
- 20 A
Max output current (+5V):
- 20 A
Max output current (+5Vsb):
- 3 A
Max output current (-12V):
- 0.3 A
Technical details
Bearing technology:
- FDB
Compliance certificates:
- RoHS, EAC, CE
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 140 mm
Height:
- 86 mm
Package depth:
- 115 mm
Package height:
- 210 mm
Package weight:
- 2.87 kg
Package width:
- 320 mm
Width:
- 150 mm
