Περιγραφή

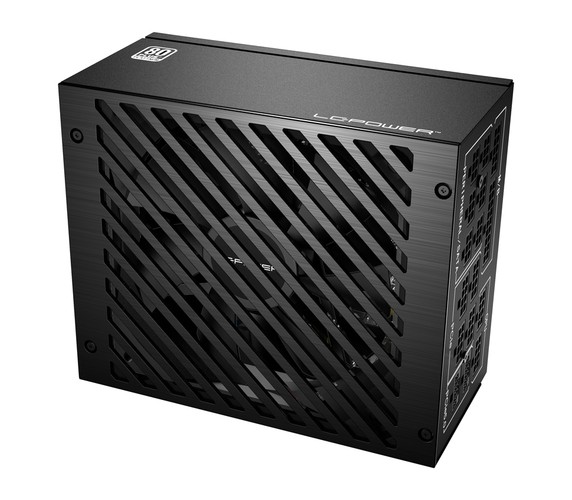

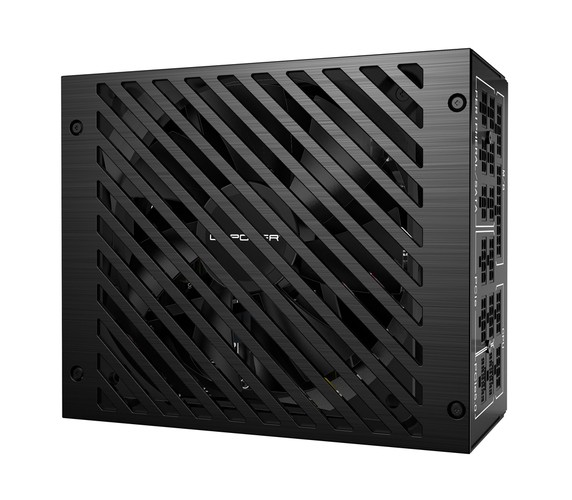

The LC1200P V3.0 is an 80 PLUS® PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.
Χαρακτηριστικά
Κατασκευαστής:
LC-Power
Cooling type:
- Active
Certificates
80 PLUS certification:
- 80 PLUS Platinum
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Supported motherboard form factors:
- ATX
Ergonomics
On/off switch:
- Yes
Internal I/O
EPS power connector (8-pin):
- Yes
Lamps
Total power:
- 1200 W
Packaging data
Cables included:
- PATA, PCIe, SATA
Package type:
- Box
Performance
ATX version:
- 3.0
Fan diameter:
- 13.5 cm
Power protection features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor:
- ATX
Ports & interfaces
ATX power connector (20+4 pin):
- Yes
Cabling type:
- Fully-Modular
EPS power connector (4+4 pin):
- Yes
Motherboard power cable length:
- 65 cm
Motherboard power connector:
- 20+4 pin ATX
Number of PATA power connectors:
- 6
Number of SATA power connectors:
- 20
PCI Express power connectors (12+4 pin):
- 2
PCI Express power connectors (6+2 pin):
- 6
Peripheral (Molex) power cable length:
- 500,800 mm
Peripheral (Molex) power connectors (4-pin):
- 2
SATA power cable length:
- 500,650,800,950 mm
Power
AC input frequency:
- 47 - 60 Hz
AC input voltage:
- 110 - 240 V
Combined power (+12V):
- 1200 W
Combined power (+3.3V):
- 100 W
Combined power (+5V):
- 100 W
Combined power (+5Vsb):
- 15 W
Combined power (-12V):
- 3.6 W
Efficiency:
- 92%
Max output current (+12V):
- 100 A
Max output current (+3.3V):
- 20 A
Max output current (+5V):
- 20 A
Max output current (+5Vsb):
- 3 A
Max output current (-12V):
- 0.3 A
Power Factor Correction (PFC) type:
- Active
Technical details
Compliance certificates:
- CE, cTUVus
Sustainability compliance:
- Yes
Warranty period:
- 3 year(s)
Weight & dimensions
Depth:
- 180 mm
Height:
- 150 mm
Package depth:
- 295 mm
Package height:
- 225 mm
Package weight:
- 4.03 kg
Package width:
- 120 mm
Weight:
- 3.67 kg
Width:
- 86 mm
