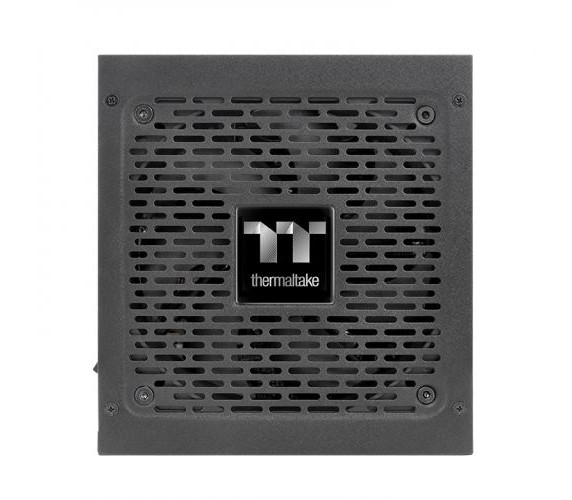

Thermaltake Toughpower PF1 power supply unit 850 W 24-pin ATX ATX Black (PS-TPD-0750FNFAPE-1)
Χαρακτηριστικά
Κατασκευαστής:
Thermaltake
Certification:
- CE, UL, TÜV, FCC, CCC, EAC, S-Mark, BSMI
Noise level:
- 27.8 dB
Certificates
80 PLUS certification:
- 80 PLUS Platinum
Cooling
Fan location:
- Top
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Ergonomics
On/off switch:
- Yes
Lamps
Total power:
- 850 W
Logistics data
Harmonized System (HS) code:
- 84733020
Operational conditions
Operating relative humidity (H-H):
- 20 - 85%
Operating temperature (T-T):
- 5 - 50 °C
Storage relative humidity (H-H):
- 10 - 95%
Storage temperature (T-T):
- -40 - 55 °C
Packaging data
Cables included:
- AC, CPU, PCIe, Peripheral (Molex), SATA
Performance
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 120000 h
Power protection features:
- Over current, Over voltage
Power supply unit (PSU) form factor:
- ATX
Silent mode:
- Yes
Ports & interfaces
Cabling type:
- Fully-Modular
CPU power cable length:
- 65 cm
CPU power connector (4+4 pin):
- Yes
Floppy disk drive cable length:
- 15 cm
Floppy disk drive connector:
- Yes
Motherboard power cable length:
- 60 cm
Motherboard power connector:
- 24-pin ATX
Number of SATA power connectors:
- 3
PCI Express power connectors (6+2 pin):
- 4
PCI Express power connectors (6-pin):
- 2
Peripheral (Molex) power cable length:
- 150,500 mm
Peripheral (Molex) power connectors (4-pin):
- 4
SATA power cable length:
- 150,500 mm
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Combined power (+12V):
- 744 W
Combined power (+3.3V):
- 100 W
Combined power (+5Vsb):
- 12.5 W
Combined power (-12V):
- 3.6 W
Hold time:
- 16 ms
Input current:
- 10 A
Max output current (+12V):
- 62 A
Max output current (+3.3V):
- 20 A
Max output current (+5V):
- 20 A
Max output current (+5Vsb):
- 2.5 A
Max output current (-12V):
- 0.3 A
Peak power:
- 900 W
Power Factor Correction (PFC) type:
- Active
Technical details
Bearing technology:
- HDB
Weight & dimensions
Depth:
- 140 mm
Height:
- 86 mm
Width:
- 150 mm
