Thermaltake TR2 S 700W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

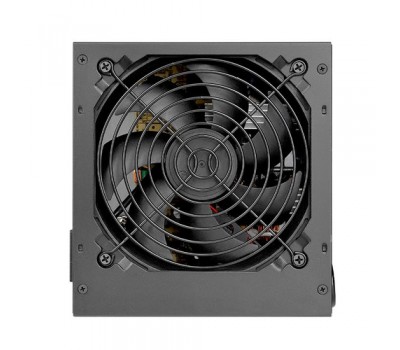

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

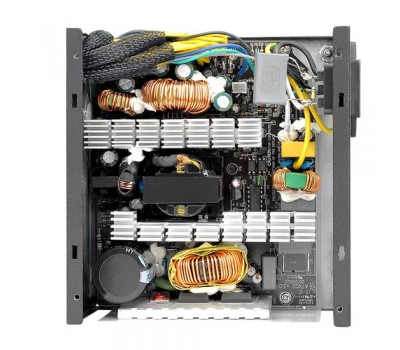

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
Χαρακτηριστικά
Κατασκευαστής:
Thermaltake
Certification:
- CE/CB/TÜV
Cooling type:
- Active
Certificates
80 PLUS certification:
- 80 PLUS
Cooling
Fan location:
- Top
Fan speed:
- 1800
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black
Lamps
Total power:
- 700 W
Logistics data
Harmonized System (HS) code:
- 84733020
Operational conditions
Operating relative humidity (H-H):
- 20 - 85%
Operating temperature (T-T):
- 5 - 40 °C
Storage relative humidity (H-H):
- 10 - 95%
Storage temperature (T-T):
- -40 - 55 °C
Packaging data
Package type:
- Box
Performance
ATX version:
- 2.3
Fan diameter:
- 12 cm
Mean time between failures (MTBF):
- 100000 h
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
ATX power connector (20+4 pin):
- Yes
Cabling type:
- Non-Modular
CPU power connector (4+4 pin):
- Yes
Floppy disk drive connector:
- Yes
Motherboard power connector:
- 20+4 pin ATX
Number of SATA power connectors:
- 6
PCI Express power connectors (6+2 pin):
- 2
Peripheral (Molex) power connectors (4-pin):
- 5
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 230 V
Combined power (+12V):
- 648 W
Combined power (+3.3V):
- 120 W
Combined power (+5V):
- 120 W
Combined power (+5Vsb):
- 12.5 W
Combined power (-12V):
- 6 W
Efficiency:
- 86%
Hold time:
- 16 ms
Input current:
- 9 A
Max output current (+12V):
- 54 A
Max output current (+3.3V):
- 24 A
Max output current (+5V):
- 17 A
Max output current (+5Vsb):
- 2.5 A
Max output current (-12V):
- 0.5 A
Power Factor Correction (PFC) type:
- Active
Weight & dimensions
Depth:
- 140 mm
Height:
- 86 mm
Width:
- 150 mm
