Περιγραφή

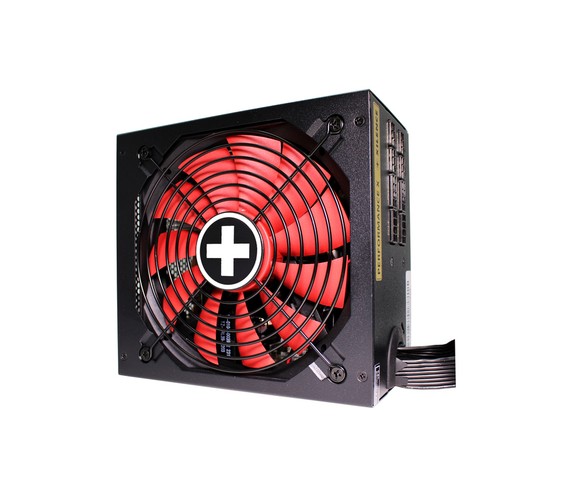

The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
Χαρακτηριστικά
Κατασκευαστής:
Xilence
Cooling type:
- Active
Certificates
80 PLUS certification:
- 80 PLUS Gold
Design
Number of fans:
- 1 fan(s)
Product colour:
- Black, Red
Lamps
Total power:
- 750 W
Packaging data
Package type:
- Box
Performance
ATX version:
- 3.0
Fan diameter:
- 14 cm
Power protection features:
- Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor:
- ATX
Purpose:
- PC
Ports & interfaces
Cabling type:
- Semi-Modular
CPU P4 connector (4-pin):
- 1
CPU power connector (4+4 pin):
- Yes
Motherboard power connector:
- 20+4 pin ATX
Number of SATA power connectors:
- 6
PCI Express power connectors (6+2 pin):
- 3
PCI Express power connectors (8-pin):
- 1
Power
AC input voltage:
- 100 - 240 V
Efficiency:
- 92%
Max output current (+12V):
- 62.5 A
Max output current (+3.3V):
- 20 A
Max output current (+5V):
- 20 A
Max output current (+5Vsb):
- 3 A
Max output current (-12V):
- 0.3 A
Power Factor Correction (PFC) type:
- Active
Technical details
Bearing technology:
- FDB
Compliance certificates:
- RoHS, WEEE
Sustainability certificates:
- ErP
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 160 mm
Height:
- 86 mm
Width:
- 150 mm
