Περιγραφή
LIQMAX III, an entry-level AIO cooler for Intel® and AMD® CPU platforms, is characterized by vivid RGB LED lighting. Water block featuring glossy acrylic cover comes with luminous Aurabelt™ design, which can deliver splendid lighting effects. Furthermore, LIQMAX III supports RGB lighting synchronization with motherboards that have 4-pin RGB headers (+12V/G/R/B).
Applying ENERMAX’s patented Shunt-Channel-Technology (SCT), the cold plate can eliminate the boundary layer to increase coolant flow momentum and accelerate heat transfer performance. Moreover, Dual-convex blade fan can create down force air pressure and high-volume air flow for superior cooling performance. LIQMAX III cooler is an excellent choice for mainstream water-cooled RGB gaming rigs.
Premium RGB water block featuring luminous Aurabelt™ design
Water block supports synchronizable RGB lighting via motherboards with 4pin RGB header(s) (12VGRB)
Patented Shunt-Channel-Technology (SCT) boots thermal conductivity and eliminates any heat surge
ENERMAX patented SCT (Shunt-Channel-Technology) cold plate design helps eliminate the “Boundary Layer”to increase the coolant flow momentum and accelerate heat transfer performance. The SCT also lets heated and non-heated coolant to swap the channel and increase utilization rate
Dual-convex blade fan
Dual-convex blade fan creates down force air pressure and high-volume air flow
Applying ENERMAX’s patented Shunt-Channel-Technology (SCT), the cold plate can eliminate the boundary layer to increase coolant flow momentum and accelerate heat transfer performance. Moreover, Dual-convex blade fan can create down force air pressure and high-volume air flow for superior cooling performance. LIQMAX III cooler is an excellent choice for mainstream water-cooled RGB gaming rigs.
Premium RGB water block featuring luminous Aurabelt™ design
Water block supports synchronizable RGB lighting via motherboards with 4pin RGB header(s) (12VGRB)
Patented Shunt-Channel-Technology (SCT) boots thermal conductivity and eliminates any heat surge
ENERMAX patented SCT (Shunt-Channel-Technology) cold plate design helps eliminate the “Boundary Layer”to increase the coolant flow momentum and accelerate heat transfer performance. The SCT also lets heated and non-heated coolant to swap the channel and increase utilization rate
Dual-convex blade fan
Dual-convex blade fan creates down force air pressure and high-volume air flow
Χαρακτηριστικά
Κατασκευαστής:
Enermax
Base plate material:
- Copper
Maximum airflow:
- 90.1 cfm
Suitable location:
- Processor
Type:
- All-in-one liquid cooler
Cooling
Fan rated voltage:
- 12 V
Design
Illumination LED:
- Yes
Number of fans:
- 1 fan(s)
Product colour:
- Black
Radiator material:
- Aluminum
Tube material:
- Rubber
Logistics data
Harmonized System (HS) code:
- 84733080
Master (outer) case gross weight:
- 12.3 kg
Master (outer) case height:
- 460 mm
Master (outer) case length:
- 300 mm
Master (outer) case width:
- 552 mm
Products per master (outer) case:
- 8 pc(s)

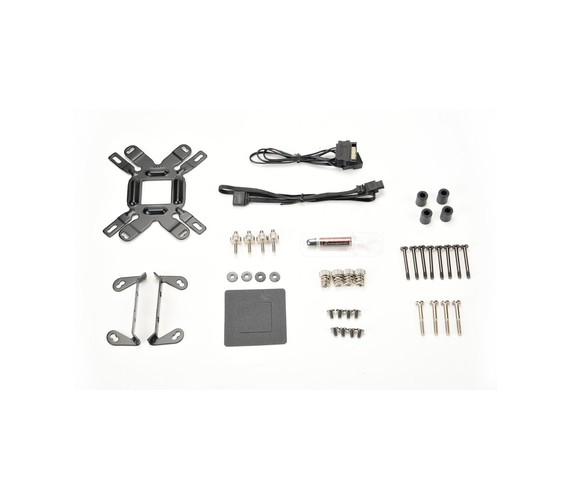

Packaging content
Mounting kit:
- Yes
Screws included:
- Yes
Thermal grease:
- Yes
Performance
Bearing type:
- Ceramic bearing
Compatible processor series:
- AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Cooling capacity in watts (max):
- 300 W
Fan connector:
- 4-pin
Fan diameter:
- 12 cm
Maximum air pressure:
- 3.1 mmH2O
Mean time between failures (MTBF):
- 160000 h
Minimum air pressure:
- 0.2 mmH2O
Minimum airflow (imperial):
- 22.5 cfm
Noise level (high speed):
- 32 dB
Noise level (low speed):
- 14 dB
Pulse-width modulation (PWM) support:
- Yes
Rotational speed (max):
- 2000 RPM
Rotational speed (min):
- 500 RPM
Supported processor sockets:
- LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket
Power
Pump rated voltage:
- 12 V
Weight & dimensions
Depth:
- 120 mm
Fan dimensions (W x D x H):
- 120 x 120 x 25 mm
Heatsink dimensions (W x D x H):
- 154 x 120 x 27 mm
Height:
- 53 mm
Package depth:
- 215 mm
Package height:
- 137 mm
Package weight:
- 1.53 kg
Package width:
- 267 mm
Width:
- 154 mm
