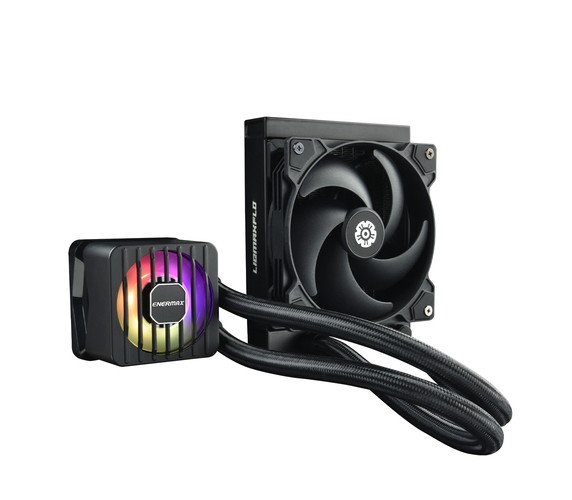

The LIQMAXFLO series, an AIO CPU Cooler featuring ENERMAX’s latest Dual-Chamber Xtreme pump and latest silent fan, delivers exceptional improvements in cooling performance with maximum quietness. LIQMAXFLO series is recommending as Intel® compatible vendor liquid cooling solutions, The combination of the LIQMAXFLO series and Intel® Core™ processors (14th gen) will maximize performance for your most demanding needs and deliver even more ultra-efficient multitasking, so you can game, stream, and record at once or video conference while sharing 4K video seamlessly.
60MM VRM FAN
LIQMAXFLO series comes with a 60mm VRM Fan with the 3-phase 6-pole motor to provide stable and silent airflow for the motherboard VRM.
ULTRA COOLING WITH MORE AIRFLOW
With the fan speed up to 3,000 rpm, the VRM fan delivers better airflow to effectively reduce temperatures of components surrounding the CPU, especially in overclocking scenarios.
MAGNETIC AND ROTATABLE PUMP COVER
The pump cover is changeable with a magnetic connection that the orientation of the logo can be changed at 90° for easier customization.
*Different options for pump cover will be available soon.
VRM FAN WITH RGB LIGHTING
With the ARGB VRM fan, you can create stunning synchronized lighting with supported motherboard’s software.
UPGRADED PRE-APPLIED THERMAL GREASE
The LIQMAXFLO series provides pre-applied premium Dow Corning® TC-5888 thermal grease and an extra tube for effortless installation.
EXTENSIVE COMPATIBILITY IN DIFFERENT SIZES
Intel Socket: LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD Socket: AM5/AM4/AM3+/FM2+/FM1
ADVANCED DUAL-CHAMBER XTREME PUMP
Introducing ENERMAX’s latest Dual-Chamber Xtreme pump with ENERMAX’s patented Shunt-Channel technology with an enlarged coolant inlet and optimized flow design, increasing the overall pump pressure (hydraulic head) by up to 30% and the coolant flow rate by up to 20%. The improvement in cooling efficiency results in an impressive 4°C lower thermal output for every 100-watt load.
TRANSCENDENCE TO EXTRAORDINARY – SILENT FLOW FAN
ENERMAX brings you the ultimate solution for radiator fans, the Silent Flow fan, which applies high-quality F.D.B. bearing and ENERMAX exclusive high-pressure fan blade design to significantly enlarge the airflow and air pressure without increasing noise levels. A maximum of 25.47dB(A), making it nearly inaudible at mid-speed.
EXCEPTIONAL FAN BLADE
With thicker fan blade in 3mm (compare to standard 1.8 to 2.2mm fans), the Silent Flow Fan accomplish quieter operation through minimized vibration, a significant leap forward in silent performance.
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°, a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.
AN ALL-PWM-CONTROLLED LIQUID CPU COOLER
The LIQMAXFLO series embraces the PWM mechanism that the pump, VRM fan and radiator fan(s) can alter their speed and airflow based on temperature to save unnecessary power churn and create a quieter environment.
PUMP
The ENERMAX’s very first PWM pump
1,200 – 3,000 RPM
VRM FAN
Smart extra cooling
500 – 3,000 RPM
RADIATOR FAN
Powerful and quiet
500 – 1,800 RPM
60MM VRM FAN
LIQMAXFLO series comes with a 60mm VRM Fan with the 3-phase 6-pole motor to provide stable and silent airflow for the motherboard VRM.
ULTRA COOLING WITH MORE AIRFLOW
With the fan speed up to 3,000 rpm, the VRM fan delivers better airflow to effectively reduce temperatures of components surrounding the CPU, especially in overclocking scenarios.
MAGNETIC AND ROTATABLE PUMP COVER
The pump cover is changeable with a magnetic connection that the orientation of the logo can be changed at 90° for easier customization.
*Different options for pump cover will be available soon.
VRM FAN WITH RGB LIGHTING
With the ARGB VRM fan, you can create stunning synchronized lighting with supported motherboard’s software.
UPGRADED PRE-APPLIED THERMAL GREASE
The LIQMAXFLO series provides pre-applied premium Dow Corning® TC-5888 thermal grease and an extra tube for effortless installation.
EXTENSIVE COMPATIBILITY IN DIFFERENT SIZES
Intel Socket: LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD Socket: AM5/AM4/AM3+/FM2+/FM1
ADVANCED DUAL-CHAMBER XTREME PUMP
Introducing ENERMAX’s latest Dual-Chamber Xtreme pump with ENERMAX’s patented Shunt-Channel technology with an enlarged coolant inlet and optimized flow design, increasing the overall pump pressure (hydraulic head) by up to 30% and the coolant flow rate by up to 20%. The improvement in cooling efficiency results in an impressive 4°C lower thermal output for every 100-watt load.
TRANSCENDENCE TO EXTRAORDINARY – SILENT FLOW FAN
ENERMAX brings you the ultimate solution for radiator fans, the Silent Flow fan, which applies high-quality F.D.B. bearing and ENERMAX exclusive high-pressure fan blade design to significantly enlarge the airflow and air pressure without increasing noise levels. A maximum of 25.47dB(A), making it nearly inaudible at mid-speed.
EXCEPTIONAL FAN BLADE
With thicker fan blade in 3mm (compare to standard 1.8 to 2.2mm fans), the Silent Flow Fan accomplish quieter operation through minimized vibration, a significant leap forward in silent performance.
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°, a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.
AN ALL-PWM-CONTROLLED LIQUID CPU COOLER
The LIQMAXFLO series embraces the PWM mechanism that the pump, VRM fan and radiator fan(s) can alter their speed and airflow based on temperature to save unnecessary power churn and create a quieter environment.
PUMP
The ENERMAX’s very first PWM pump
1,200 – 3,000 RPM
VRM FAN
Smart extra cooling
500 – 3,000 RPM
RADIATOR FAN
Powerful and quiet
500 – 1,800 RPM
Χαρακτηριστικά
Κατασκευαστής:
Enermax
Base plate material:
- Copper
Maximum airflow:
- 58.03 cfm
Number of clips:
- 3
Suitable location:
- Processor
Type:
- Liquid cooling kit
Design
Illumination colour:
- Multi
Illumination LED:
- Yes
Number of fans:
- 1 fan(s)
Product colour:
- Black
Radiator material:
- Aluminum
Tube material:
- Rubber
Logistics data
Master (outer) case gross weight:
- 13.8 kg
Master (outer) case height:
- 460 mm
Master (outer) case length:
- 300 mm
Master (outer) case width:
- 539 mm
Products per master (outer) case:
- 8 pc(s)
Packaging content
CPU bracket(s):
- Yes
CPU socket spacer(s):
- Yes
Number of washers included:
- 4
Screws included:
- Yes
Thermal pad included:
- Yes
Packaging data
Cables included:
- SATA
Package type:
- Box
Quantity per pack:
- 1 pc(s)
Performance
Bearing type:
- Ceramic bearing
Fan connector:
- 4-pin
Fan diameter:
- 12 cm
Maximum air pressure:
- 2.4 mmH2O
Mean time between failures (MTBF):
- 50000 h
Number of fan blades:
- 5
Pulse-width modulation (PWM) support:
- Yes
Pump motor speed (min):
- 1200 RPM
Rotational speed (max):
- 1800 RPM
Rotational speed (min):
- 500 RPM
Supported processor sockets:
- LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
VRM fan speed (max):
- 3000 RPM
VRM fan speed (min):
- 500 RPM
Power
Fan current:
- 0.08 A
Fan voltage:
- 12 V
Pump current:
- 430 mA
Pump voltage:
- 12 V
Processor
Thermal Design Power (TDP):
- 300 W
Technical details
Fan noise level (max):
- 23.46 dB
Fan s mean time to failure (MTTF):
- 60000 h
Pump motor speed (max):
- 3000 RPM
Weight & dimensions
Fan dimensions (W x D x H):
- 120 x 120 x 26.8 mm
Package depth:
- 215 mm
Package height:
- 137 mm
Package weight:
- 1.73 kg
Package width:
- 259 mm
Radiator depth:
- 12 cm
Radiator height:
- 2.7 cm
Radiator width:
- 15.4 cm
Tube length:
- 40 cm
VRM fan diameter:
- 6 cm
