Περιγραφή
Make business personal.

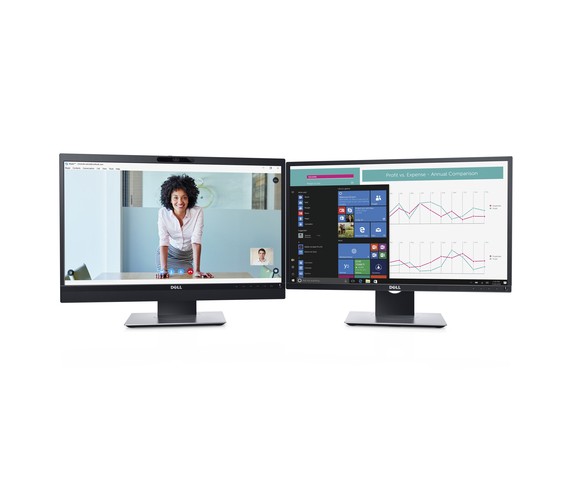

23.8-inch video conferencing monitor ideal for collaborating. Certified for Microsoft® Skype® for Business and Windows Hello.
23.8-inch video conferencing monitor ideal for collaborating. Certified for Microsoft® Skype® for Business and Windows Hello.
Χαρακτηριστικά
Κατασκευαστής:
Dell
Certification:
- TCO
Megapixel (approx.):
- 2.1 MP
Audio
Built-in microphone:
- Y
Built-in speaker(s):
- Y
Design
Cable lock slot:
- Y
Cable lock slot type:
- Kensington
Feet colour:
- Black
Front bezel colour:
- Black
LED indicators:
- Y
Market positioning:
- Business
Product colour:
- Black
Display
3D:
- N
Aspect ratio:
- 16:9
Backlight type:
- LED
Colour gamut:
- 83%
Contrast ratio (dynamic):
- 8000000:1
Contrast ratio (typical):
- 1000:1
DDC/CI:
- Y
Display brightness (typical):
- 250 cd/m²
Display diagonal:
- 61 cm (24\")
Display number of colours:
- 16.78 million colours
Display resolution:
- 1920 x 1080 pixels
Display technology:
- LCD
HD type:
- Full HD
Horizontal scan range:
- 30 - 83 kHz
Native aspect ratio:
- 16:9
Panel type:
- IPS
Pixel density:
- 93 ppi
Pixel pitch:
- 0.2745 x 0.2745 mm
Response time:
- 6 ms
Screen shape:
- Flat
Supported graphics resolutions:
- 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 900, 1920 x 1080 (HD 1080)
Supported video modes:
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Touchscreen:
- N
Vertical scan range:
- 56 - 76 Hz
Viewable size diagonal:
- 60.5 cm
Viewable size, horizontal:
- 52.7 cm
Viewable size, vertical:
- 29.6 cm
Viewing angle, horizontal:
- 178°
Viewing angle, vertical:
- 178°

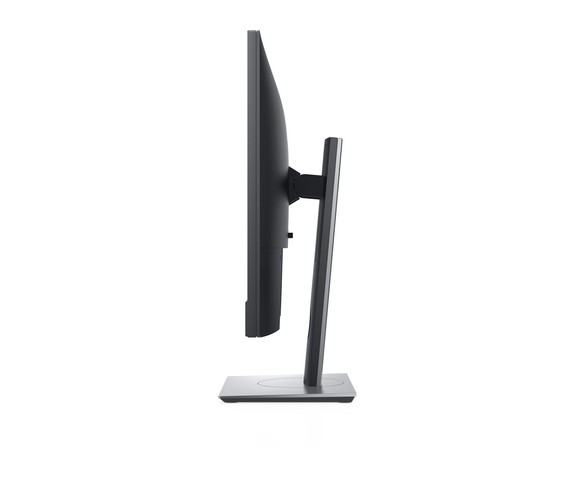

Ergonomics
Height adjustment:
- 12.5 cm
- Y
On/off switch:
- Y
Panel mounting interface:
- 100 x 100 mm
Pivot:
- Y
Pivot angle:
- 0 - 90°
Swivel angle range:
- -45 - 45°
Swivelling:
- Y
Tilt adjustment:
- Y
Tilt angle range:
- -5 - 21°
VESA mounting:
- Y
Logistics data
Harmonized System (HS) code:
- 85285210
Operational conditions
Non-operating altitude:
- 5000 - 12192 m
Operating altitude:
- 0 - 5000 m
Operating relative humidity (H-H):
- 20 - 80%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 10 - 90%
Storage temperature (T-T):
- -20 - 60 °C
Packaging content
Manual:
- Y
Stand included:
- Y
Packaging data
Cables included:
- AC, DisplayPort, USB, VGA
Performance
AMD FreeSync:
- N
NVIDIA G-SYNC:
- N
Ports & interfaces
AC (power) in:
- Y
Built-in USB hub:
- Y
DisplayPorts quantity:
- 1
DVI port:
- N
HDMI:
- Y
HDMI ports quantity:
- 1
Headphone connectivity:
- 3.5 mm
Headphone out:
- Y
Headphone outputs:
- 1
Microphone in:
- Y
Number of upstream ports:
- 1
USB hub version:
- 3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity:
- 4
USB upstream port type:
- USB Type-B
VGA (D-Sub) ports quantity:
- 1
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Energy consumption (SDR) per 1000 hours:
- 15 kWh
Energy efficiency class (SDR):
- D
Energy efficiency scale:
- A to G
Power consumption (off):
- 0.3 W
Power consumption (PowerSave):
- 13.83 W
Power consumption (standby):
- 0.3 W
Power consumption (typical):
- 18.05 W
Technical details
Sustainability certificates:
- EPEAT Gold, ENERGY STAR
Video
Maximum refresh rate:
- 60 Hz
Weight & dimensions
Bezel width (bottom):
- 4.33 cm
Bezel width (side):
- 1.14 cm
Bezel width (top):
- 1.98 cm
Depth (with stand):
- 180 mm
Depth (without stand):
- 51.1 mm
Height (with stand):
- 500.6 mm
Height (without stand):
- 359.6 mm
Package depth:
- 629.9 mm
Package height:
- 433.1 mm
Package weight:
- 8.25 kg
Package width:
- 172 mm
Weight (with stand):
- 6.12 kg
Weight (without stand):
- 3.6 kg
Width (with stand):
- 549.8 mm
Width (without stand):
- 549.8 mm
Multimedia
Built-in camera:
- Y
Number of speakers:
- 2
RMS rated power:
- 10 W
TV tuner integrated:
- N
