Περιγραφή
A true multi-talent

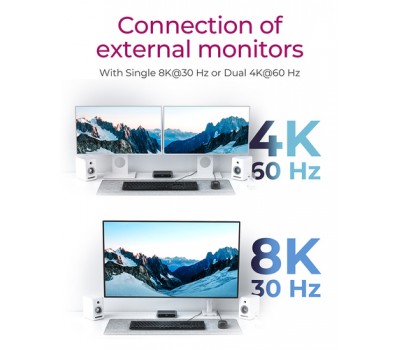

The IB-HUB801-TB4 supports up to two 4K displays at 60 Hz in extended or mirrored mode, a single 8K display at 30 Hz or a 5K Thunderbolt™ display at 60 Hz. When external high-speed storage is connected, you get read speeds of up to 3000 MB/s.
Powerful when it matters
When you connect the hub to your notebook, your notebook can draw up to 85 watts of charging power via the Power Delivery feature when needed. With 85 watts notebook charging power, the IB-HUB801-TB4 outperforms most comparable Thunderbolt™ 4 hubs, which usually deliver up to 60 watts in comparison.

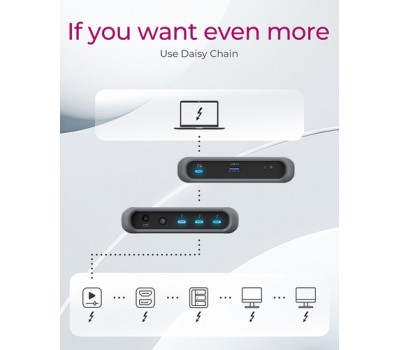

Daisy chain is back
Thunderbolt™ 4 supports high-resolution displays and high-performance data within one port, as well as connecting your computer to multiple devices via a daisy chain of cables. This also allows the hub to be daisy-chained with a larger DockingStation such as the IB-DK8801-TB4 for even more connections.
The IB-HUB801-TB4 supports up to two 4K displays at 60 Hz in extended or mirrored mode, a single 8K display at 30 Hz or a 5K Thunderbolt™ display at 60 Hz. When external high-speed storage is connected, you get read speeds of up to 3000 MB/s.
Powerful when it matters
When you connect the hub to your notebook, your notebook can draw up to 85 watts of charging power via the Power Delivery feature when needed. With 85 watts notebook charging power, the IB-HUB801-TB4 outperforms most comparable Thunderbolt™ 4 hubs, which usually deliver up to 60 watts in comparison.
Daisy chain is back
Thunderbolt™ 4 supports high-resolution displays and high-performance data within one port, as well as connecting your computer to multiple devices via a daisy chain of cables. This also allows the hub to be daisy-chained with a larger DockingStation such as the IB-DK8801-TB4 for even more connections.
Χαρακτηριστικά
Κατασκευαστής:
Icy Box
Cable type:
- Round cable
USB Power Delivery up to:
- 85 W
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 1
Design
Housing material:
- Aluminium, Plastic
Product colour:
- Anthracite, Black
Display
HD type:
- 8K Ultra HD
Supported graphics resolutions:
- 3840 x 2160, 7680 x 4320
Logistics data
Master (outer) case gross weight:
- 10.7 kg
Master (outer) case height:
- 290 mm
Master (outer) case length:
- 220 mm
Master (outer) case width:
- 460 mm
Products per master (outer) case:
- 9 pc(s)
Networking
Ports quantity:
- 4
Packaging data
Quantity per pack:
- 1 pc(s)
Performance
Data transfer rate:
- 40000 Mbit/s
Plug and Play:
- Yes
Ports & interfaces
DC-in jack:
- Yes
Host interface:
- Thunderbolt 4
Hub interfaces:
- Thunderbolt 4, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Thunderbolt 4 ports quantity:
- 3
USB Power Delivery (USB PD):
- Yes
Power
AC input frequency:
- 50-60 Hz
Input current:
- 2 A
Input voltage:
- 100-240 V
Output current:
- 5 A
Output voltage:
- 20 V
Power supply:
- 100 W
Power supply type:
- USB/AC
System requirements
Mac operating systems supported:
- Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported:
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Technical details
Country of origin:
- China
Video
Maximum refresh rate:
- 60 Hz
Weight & dimensions
Depth:
- 72 mm
Height:
- 22 mm
Package depth:
- 90 mm
Package height:
- 146 mm
Package weight:
- 1.13 kg
Package width:
- 204 mm
Weight:
- 200 g
Width:
- 121 mm
