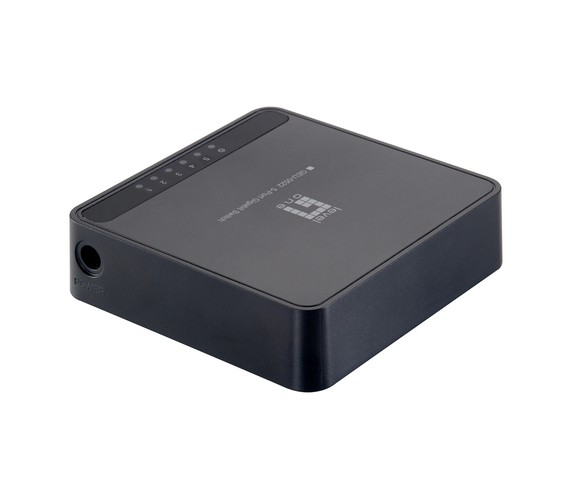

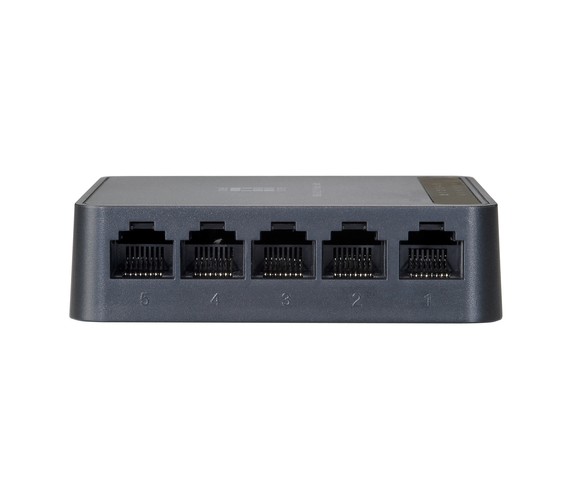

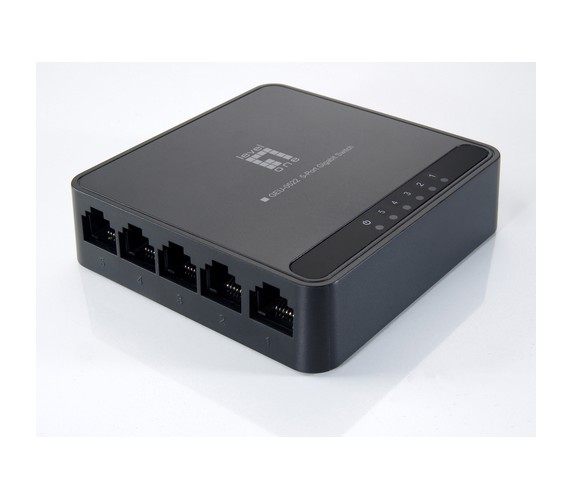

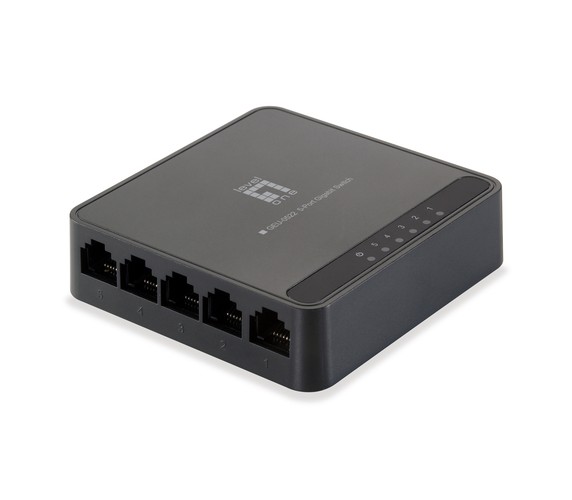

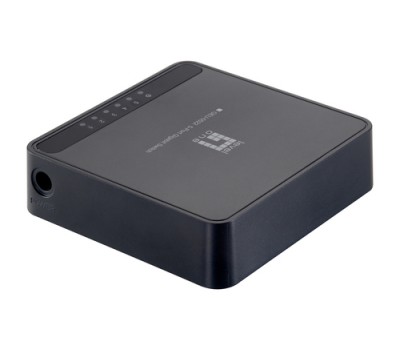

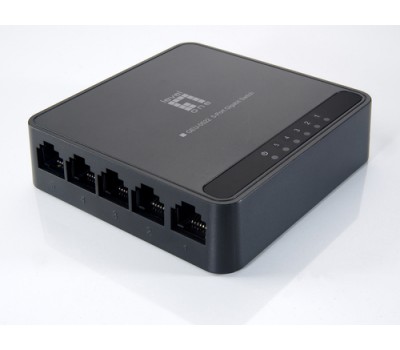

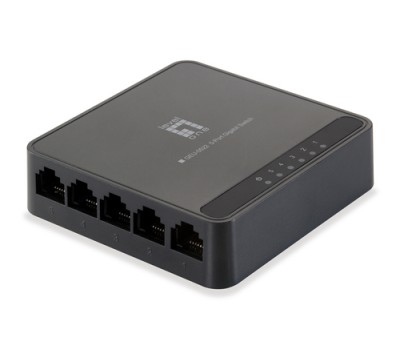

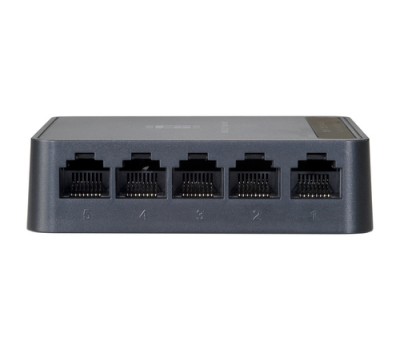

LevelOne 5-Port Gigabit Switch (GEU-0522)
Περιγραφή
The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- CE, FCC
Data transmission
Jumbo frames:
- 9000
Jumbo frames support:
- Yes
MAC address table:
- 1000 entries
Packet forwarding rate (1 Gbps):
- 1488100 pps
Packet forwarding rate (10 Mbps):
- 14880 pps
Packet forwarding rate (100 Mbps):
- 148810 pps
Store-and-forward:
- Yes
Switching capacity:
- 10 Gbit/s
Design
LED indicators:
- Activity, Link, Power
Product colour:
- Black
Stackable:
- No
Logistics data
Harmonized System (HS) code:
- 85176990
Master (outer) case gross weight:
- 10.2 kg
Master (outer) case height:
- 516 mm
Master (outer) case length:
- 191 mm
Master (outer) case width:
- 495 mm
Products per master (outer) case:
- 50 pc(s)
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Full duplex:
- Yes
MAC address auto-aging supported:
- Yes
MAC address auto-learning supported:
- Yes
Networking standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 50 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Packaging content
AC adapter included:
- Yes
Quick start guide:
- Yes
Packaging data
Package type:
- Box
Performance
Auto-negotiation:
- Yes
Buffer size:
- 64 KB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 5
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-T, 1000BASE-T
Power
Input current:
- 0.6 A
Input voltage:
- 5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Technical details
Country of origin:
- China
Weight & dimensions
Depth:
- 23 mm
Height:
- 89 mm
Package depth:
- 82 mm
Package height:
- 98 mm
Package weight:
- 184 g
Package width:
- 95 mm
Weight:
- 71.4 g
Width:
- 86 mm
