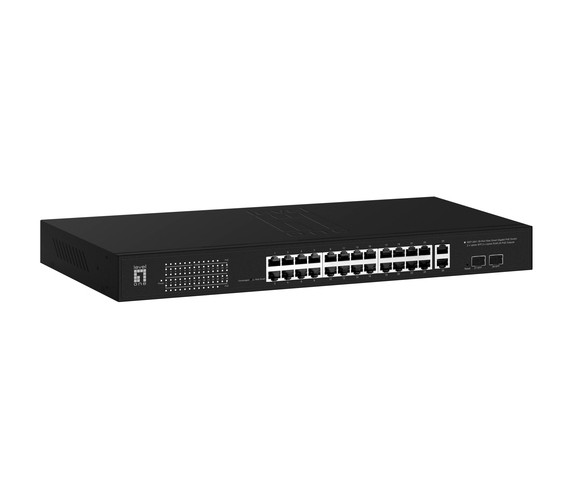

LevelOne GEP-2841 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (GEP-2841)
Περιγραφή
The LevelOne GEP-2841 Web Smart Gigabit PoE Switch, provides 24 PoE ports 10/100/1000Base-T plus 2 port Gigabit Uplink SFP and 2 port Gigabit Uplink RJ45 to enable high speed network. With the plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. It offers powerful enhanced PoE functionality and a total PoE budget of 375W. and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- CE, RoHS
Data transmission
Jumbo frames:
- 9000
Jumbo frames support:
- Yes
MAC address table:
- 8000 entries
Design
Form factor:
- 1U
LED indicators:
- Yes
Product colour:
- Black
Rack mounting:
- Yes
Stackable:
- No
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Quality of Service (QoS) support:
- Yes
Switch layer:
- L2
Switch type:
- Managed
Web-based management:
- Yes
Networking
10G support:
- No
Ethernet LAN data rates:
- 10,100,1000 Mbit/s
Networking standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H):
- 5 - 90%
Operating temperature (T-T):
- -10 - 65 °C
Storage relative humidity (H-H):
- 5 - 95%
Storage temperature (T-T):
- -40 - 75 °C
Packaging content
Quick start guide:
- Yes
Rack mount kit:
- Yes
Packaging data
Cables included:
- AC
Package type:
- Box
Performance
Fanless:
- No
Firmware upgradeable:
- Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 26
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T
Gigabit Ethernet (copper) ports quantity:
- 24
SFP module slots quantity:
- 2
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Input current:
- 4 A
Power connector:
- AC-in jack
Power consumption (max):
- 400 W
Power source:
- AC
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Power over Ethernet (PoE) power per port:
- 15.4 W
Total Power over Ethernet (PoE) budget:
- 375 W
Security
Loop protection:
- Yes
Storage
Internal memory:
- 4.1 MB
Technical details
Country of origin:
- China
Virtual LAN features
VLAN support:
- Yes
Weight & dimensions
Depth:
- 220 mm
Height:
- 45 mm
Package depth:
- 299 mm
Package height:
- 93 mm
Package weight:
- 3 kg
Package width:
- 497 mm
Weight:
- 2.34 kg
Width:
- 438 mm
