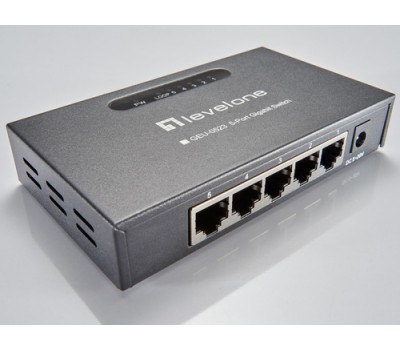

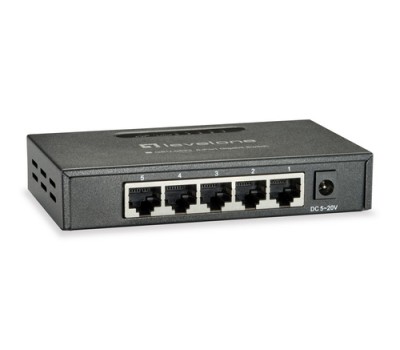

LevelOne GEU-0523 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black (GEU-0523)
Περιγραφή
The LevelOne GEU-0523 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. The GEU-0523 is the ideal and cost-effective choice for expanding your network.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Data transmission
Jumbo frames:
- 9000
Jumbo frames support:
- Y
MAC address table:
- 2000 entries
Packet forwarding rate (1 Gbps):
- 1488000 pps
Switching capacity:
- 10 Gbit/s
Transmission method:
- Store- froward
Design
Housing material:
- Metal
LED indicators:
- Y
Product colour:
- Black
Rack mounting:
- N

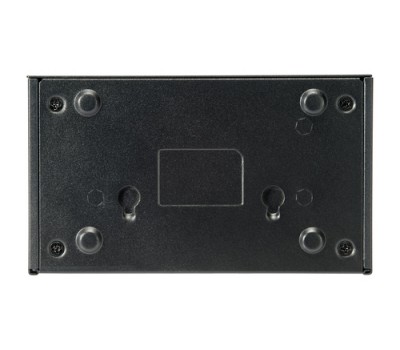

Wall mountable:
- Y
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Switch type:
- Unmanaged
Networking
10G support:
- N
MAC address auto-aging supported:
- Y
MAC address auto-learning supported:
- Y
Networking standards:
- IEEE 802.3az
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Packaging content
AC adapter included:
- Y
Manual:
- Y
Quick start guide:
- Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 5
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:
- 5
Power
DC input voltage:
- 5 V
Input current:
- 0.5 A
Power supply included:
- N
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- N
Processor
Built-in processor:
- Y
Processor model:
- MT7530D
Storage
Flash memory:
- 1024 MB
Technical details
Country of origin:
- China
Weight & dimensions
Depth:
- 72 mm
Height:
- 24 mm
Package depth:
- 80 mm
Package height:
- 80 mm
Package weight:
- 290 g
Package width:
- 138 mm
Weight:
- 174 g
Width:
- 124 mm
