Περιγραφή
The GTL-2661 series includes high performance Gigabit Ethernet Layer2 switches featuring 26 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual port module. The switch is ideal for high performance server aggregations, such as enterprise data centers, where it can connect high end or network attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit to the desktop for power users. This switch is packed with features and is a cost effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- CE class A, FCC, VCCI, BSMI
Data transmission
Forwarding rate:
- 65.5 Mpps
Jumbo frames:
- 10000
Jumbo frames support:
- Yes
MAC address table:
- 16000 entries
Number of queues:
- 8
Static route:
- Yes
Store-and-forward:
- Yes
Switching capacity:
- 88 Gbit/s
Design
LED indicators:
- Activity, Link, Power
Product colour:
- Black
Rack mounting:
- Yes
Safety:
- UL
Logistics data
Harmonized System (HS) code:
- 85176990
Master (outer) case gross weight:
- 11 kg
Master (outer) case height:
- 435 mm
Master (outer) case length:
- 600 mm
Master (outer) case width:
- 340 mm
Products per master (outer) case:
- 4 pc(s)
Management features
Quality of Service (QoS) support:
- Yes
Switch layer:
- L2
Switch type:
- Managed
Traffic classification:
- Yes
Web-based management:
- Yes
Networking
10G support:
- Yes
Broadcast storm control:
- Yes
Cable length detection:
- Yes
Flow control support:
- Yes
Link aggregation:
- Yes
Networking standards:
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring:
- Yes
Rate limiting:
- Yes
Spanning tree protocol:
- Yes
Operational conditions
Heat dissipation:
- 68.242 BTU/h
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 50 °C
Packaging content
Quick start guide:
- Yes
Rack mount kit:
- Yes
Resource CD:
- Yes
Packaging data
Cables included:
- AC, LAN (RJ-45)
Package type:
- Box
Performance
Fanless:
- Yes
Firmware upgradeable:
- Yes
Management protocols:
- MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP
Mean time between failures (MTBF):
- 636219 h
Packet buffer memory:
- 12 MB
Reset button:
- Yes
Telnet:
- Yes
Ports & interfaces

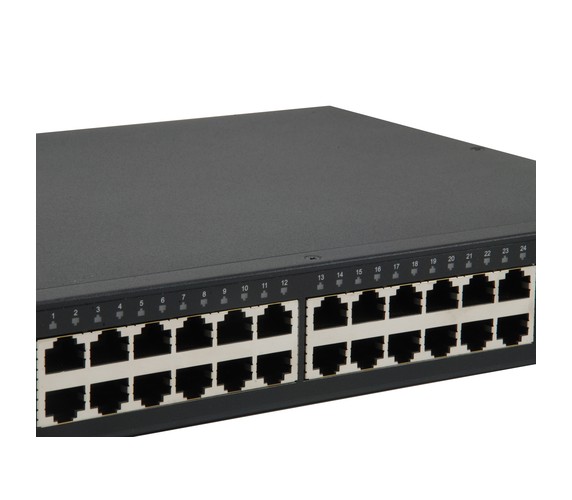

Basic switching RJ-45 Ethernet ports quantity:
- 24
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Console port:
- RJ-45
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T
SFP+ module slots quantity:
- 2
Power

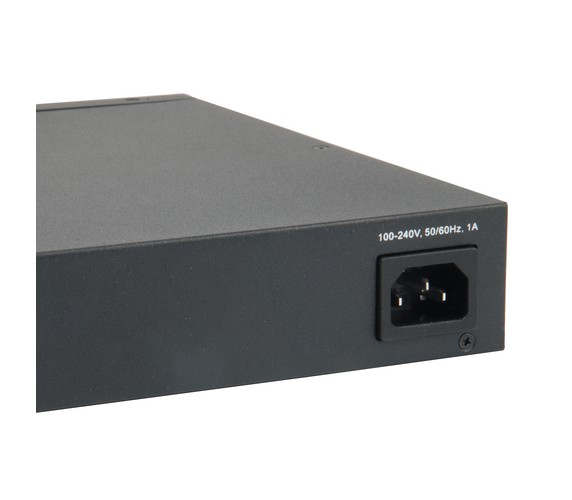

AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Power consumption (typical):
- 20 W
Power source:
- AC
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Protocols
Supported network protocols:
- IPv4/IPv6
Security
Access Control List (ACL):
- Yes
BPDU filtering/protection:
- Yes
DHCP features:
- DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
DoS attack prevention:
- Yes
Password protection:
- Yes
SSH/SSL support:
- Yes
Static port security:
- Yes
System event log:
- Yes
Storage
Internal memory:
- 32 MB
Technical details
Country of origin:
- China
Virtual LAN features
Virtual LAN features:
- Tagged VLAN, MAC address-based VLAN, Port-based VLAN
VLAN support:
- Yes
Weight & dimensions
Depth:
- 440 mm
Height:
- 44 mm
Package depth:
- 580 mm
Package height:
- 80 mm
Package weight:
- 3.02 kg
Package width:
- 405 mm
Weight:
- 2.29 kg
Width:
- 220 mm
