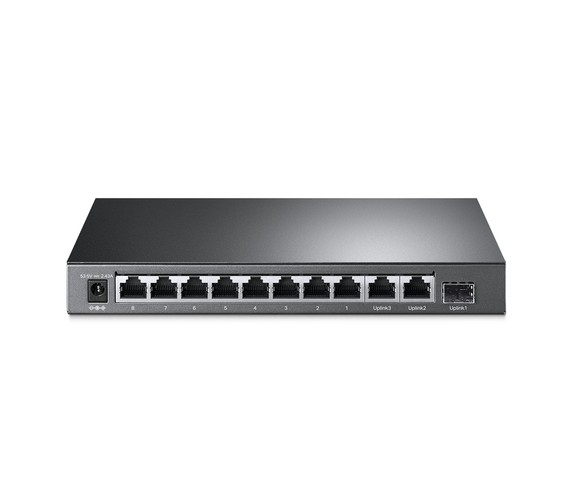

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (TL-SG1210MP)
Χαρακτηριστικά
Κατασκευαστής:
TP-Link
Certification:
- CE, FCC
Data transmission
MAC address table:
- 4000 entries
Store-and-forward:
- Y
Switching capacity:
- 20 Gbit/s
Design
LED indicators:
- Y
Product colour:
- Black
Rack mounting:
- N
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Switch type:
- Unmanaged
Networking
10G support:
- N
Auto MDI/MDI-X:
- Y
Cable types supported:
- Cat3, Cat4, Cat5, Cat5e
Flow control support:
- Y
MAC address auto-aging supported:
- Y
MAC address auto-learning supported:
- Y
Networking standards:
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Heat dissipation:
- 482.17 BTU/h
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Performance
Auto-negotiation:
- Y
Fanless:
- Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 9
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity:
- 1
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-TX
Power
Power consumption (max):
- 141.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Y
Power over Ethernet (PoE) power per port:
- 30 W
Power over Ethernet plus (PoE+) ports quantity:
- 8
Total Power over Ethernet (PoE) budget:
- 123 W
Weight & dimensions
Depth:
- 209 mm
Height:
- 26 mm
Width:
- 126 mm
