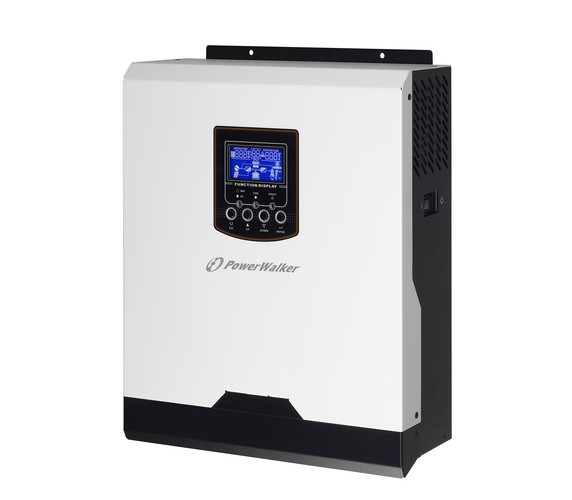

PowerWalker Inverter 3000 PWM uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W (10120224)
Περιγραφή

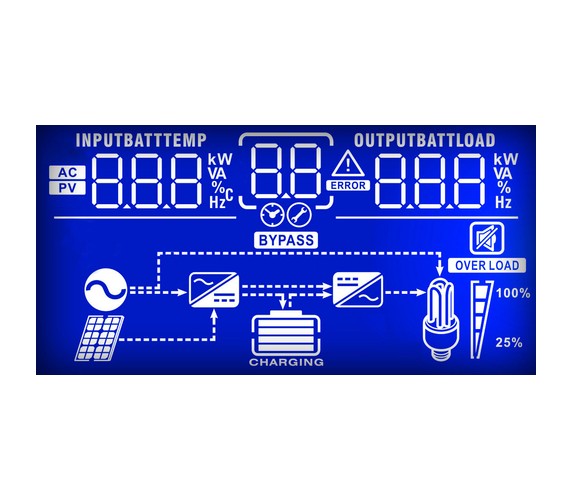

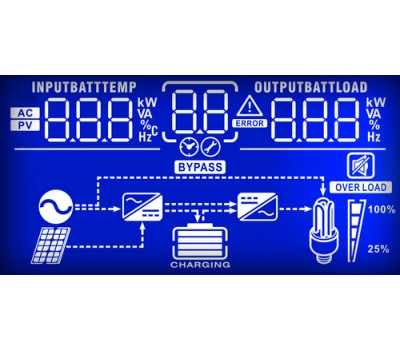

PowerWalker Inverter 3000-5000 PWM series is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Design
Form factor:
- Tower
Product colour:
- Black, White
Display
Display type:
- LCD
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 5 - 95%
Operating temperature (T-T):
- -10 - 50 °C
Storage temperature (T-T):
- -15 - 60 °C
Packaging content
Manual:
- Y
Packaging data
Cables included:
- USB cable
Performance
Power protection features:
- Overcharge
UPS topology:
- Line-Interactive
Waveform:
- Pure sine
Ports & interfaces
RS-232 ports:
- 1
USB port:
- Y
Power
Efficiency:
- 96.6%
Input frequency:
- 50/60 Hz
Input operation voltage (max):
- 280 V
Input operation voltage (min):
- 90 V
Output operation voltage (max):
- 230 V
Output power:
- 3000 W
Output power capacity:
- 3 kVA
Output power factor:
- 1
Output voltage regulation:
- -5 - 5%
Weight & dimensions
Depth:
- 100 mm
Height:
- 334 mm
Package depth:
- 500 mm
Package height:
- 216 mm
Package width:
- 400 mm
Weight:
- 6.3 kg
Width:
- 285 mm
