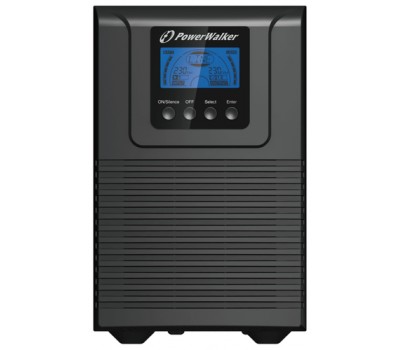

PowerWalker VFI 1000 TG uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s) (10122041)
Περιγραφή
- 1000VA / 900W Online UPS with Power Factor 0.9
- C14 Input, 4x IEC C13 Outlet
- Batteries included: 2x 12V/9Ah
- Online technology with Power Factor 0.9
- Human Interface Device (USB HID) support
- Wide Input Range 100-300VAC for all environments
- Available with integrated batteries
The PowerWalker VFI 1000-3000 TG and its long-run version VFI 1000-3000 TGS offer a professional solution for home and office environment. UPSs are available with internal batteries or alternatively with stronger charger (6A instead of 1A) for an external battery solution.
VFI TG(S) series are detected as HID Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
- C14 Input, 4x IEC C13 Outlet
- Batteries included: 2x 12V/9Ah
- Online technology with Power Factor 0.9
- Human Interface Device (USB HID) support
- Wide Input Range 100-300VAC for all environments
- Available with integrated batteries
The PowerWalker VFI 1000-3000 TG and its long-run version VFI 1000-3000 TGS offer a professional solution for home and office environment. UPSs are available with internal batteries or alternatively with stronger charger (6A instead of 1A) for an external battery solution.
VFI TG(S) series are detected as HID Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Cooling type:
- Active
Noise level:
- 45 dB
Battery
Battery capacity:
- 9 Ah
Battery recharge time:
- 4 h
Battery voltage:
- 12 V
Charging current:
- 1.5 A
Typical backup time at full load:
- 4.5 min
Design
Form factor:
- Mini Tower
LED indicators:
- Yes
Product colour:
- Black
Display
Display type:
- LCD
Response time:
- 4 ms
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 0 - 95%
Operating temperature (T-T):
- 0 - 40 °C
Other features
I/O ports:
- Intelligent Slot
Packaging content
Manual:
- Yes
Resource CD:
- Yes
Packaging data
Cables included:
- Input power cable, USB cable
Performance
Number of batteries supported:
- 2
UPS topology:
- Double-conversion (Online)

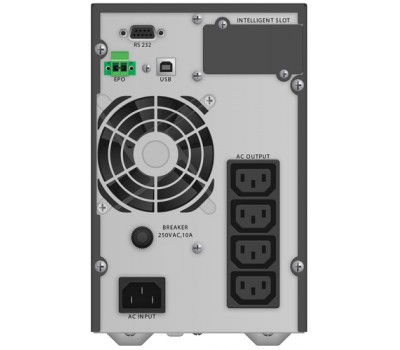

Ports & interfaces
Emergency Power Off (EPO) connector:
- Yes
Power plug:
- C14 coupler
RS-232 ports:
- 1
USB 2.0 ports quantity:
- 1
Power
AC outlet types:
- C13 coupler
AC outlets quantity:
- 4 AC outlet(s)
Crest factor:
- 3:1
Efficiency:
- 89%
Emergency Power Off (EPO):
- Yes
Input frequency:
- 40 - 70 Hz
Input operation voltage (max):
- 300 V
Input operation voltage (min):
- 80 V
Input power factor:
- 0.99
Output frequency regulation:
- -0.05 - 0.05 Hz
Output operation voltage (max):
- 240 V
Output operation voltage (min):
- 220 V
Output power:
- 900 W
Output power capacity:
- 1 kVA
Output power factor:
- 0.9
Output voltage regulation:
- -2 - 2%
Weight & dimensions
Depth:
- 356 mm
Height:
- 229 mm
Package depth:
- 330 mm
Package height:
- 240 mm
Package weight:
- 10.3 kg
Package width:
- 436 mm
Weight:
- 9.3 kg
Width:
- 144 mm
