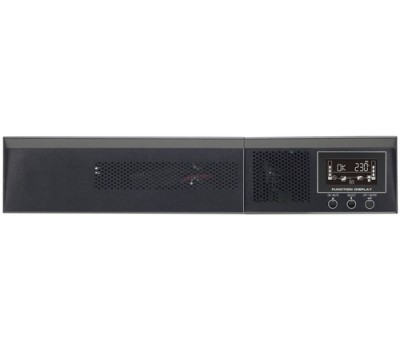

PowerWalker VFI 1500 RMG PF1 uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W (10122113)
Περιγραφή
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support.
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Input current Total Harmonic Distortion (THD):
- 1.6%
Noise level:
- 50 dB
Output voltage Total Harmonic Distortion (THD):
- 2%
Surge protection features:
- Fax, Modem, Network
Battery
Battery capacity:
- 9 Ah
Battery recharge time:
- 3 h
Battery voltage:
- 12 V
Typical backup time at full load:
- 3 min
Typical backup time at half load:
- 10.3 min
Design
Form factor:
- Rackmount
Product colour:
- Black
Rack capacity:
- 2U
Display
Display type:
- LCD
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 20 - 95%
Operating temperature (T-T):
- 0 - 40 °C
Packaging content
Manual:
- Yes
Resource CD:
- Yes
Warranty card:
- Yes
Packaging data
Bundled software:
- ViewPower / ViewPowerMini
Cables included:
- Input power cable, Output power cable, USB cable
Package type:
- Box
Performance
Number of batteries supported:
- 3
Surge protection:
- Yes
UPS topology:
- Double-conversion (Online)
Waveform:
- Sine
Ports & interfaces
Emergency Power Off (EPO) connector:
- Yes
Ethernet LAN (RJ-45) ports:
- 1
Modem (RJ-11) ports:
- 1
Number of type F outputs:
- 8
Power plug:
- C14 coupler
RS-232 ports:
- 1
Serial interface:
- Yes
Serial interface type:
- RS-232
USB 2.0 ports quantity:
- 1
USB port:
- Yes
Power
AC outlet types:
- C13 coupler
Crest factor:
- 3:1
Emergency Power Off (EPO):
- Yes
Input frequency:
- 40/70 Hz
Input operation voltage (max):
- 300 V
Input operation voltage (min):
- 110 V
Output operation voltage (max):
- 240 V
Output operation voltage (min):
- 200 V
Output power:
- 1500 W
Output power capacity:
- 1.5 kVA
Output voltage regulation:
- 1%
Technical details
Power factor:
- 0.99
Weight & dimensions
Depth:
- 410 mm
Height:
- 88 mm
Package depth:
- 560 mm
Package height:
- 180 mm
Package weight:
- 19 kg
Package width:
- 500 mm
Weight:
- 15.5 kg
Width:
- 438 mm
