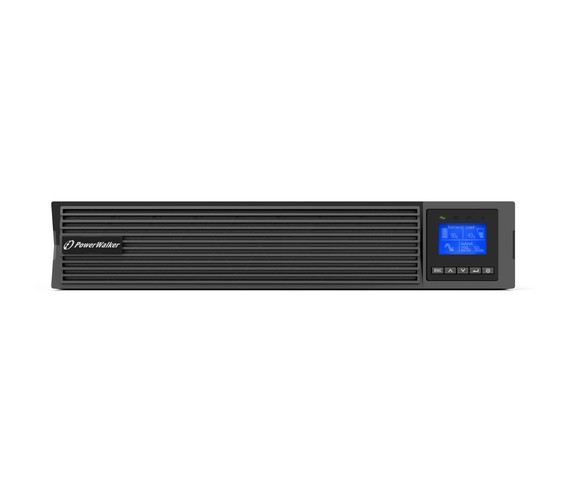

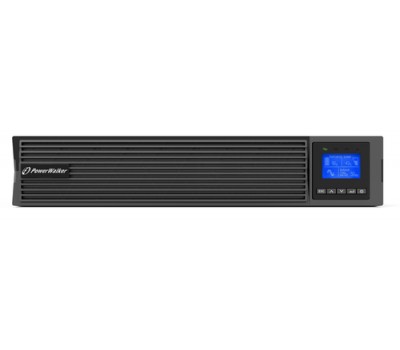

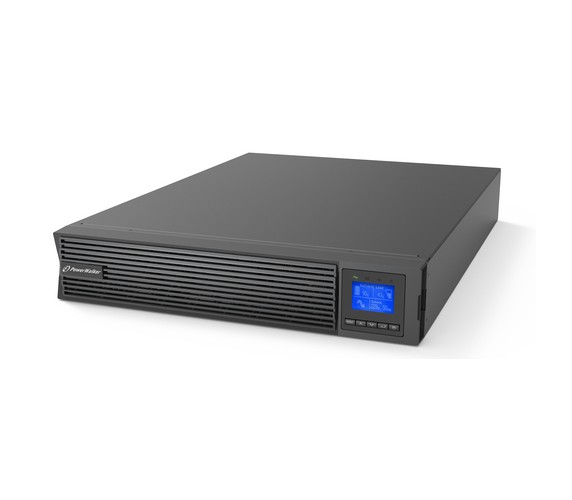

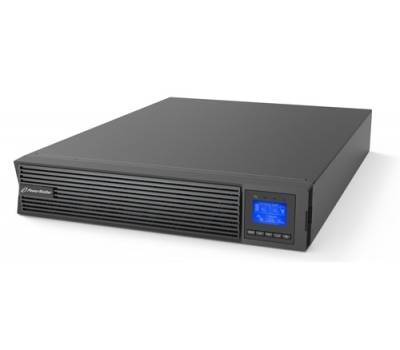

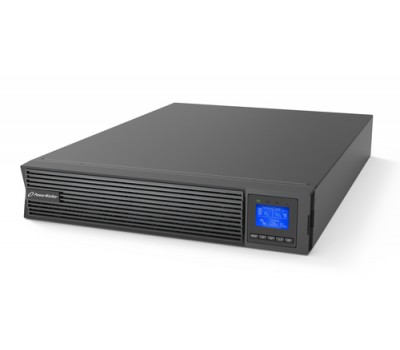

PowerWalker VFI 3000 ICR IoT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 9 AC outlet(s) (10122199)
Περιγραφή
PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

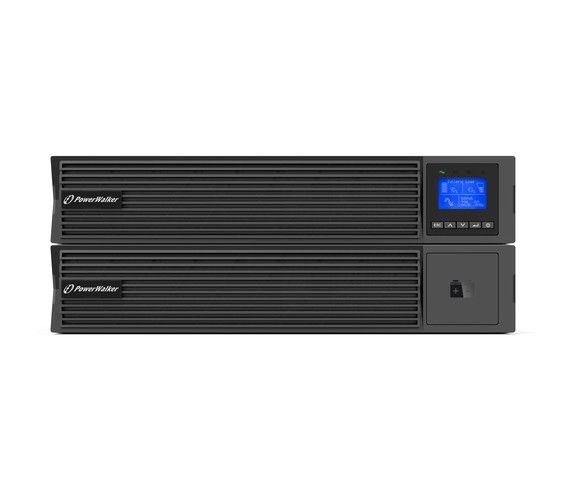

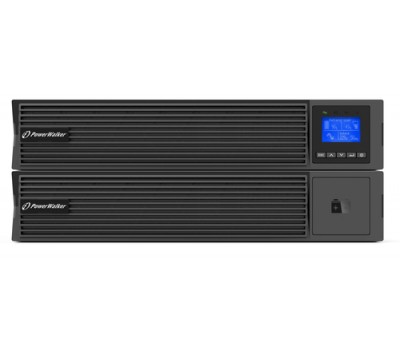

This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Stay up to date everywhere and anytime.
This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Stay up to date everywhere and anytime.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Cooling type:
- Active
Efficiency (On-line mode):
- 93%
Noise level:
- 50 dB
Battery
Battery capacity:
- 9 Ah
Battery recharge time:
- 3 h
Battery voltage:
- 12 V
Charging current:
- 1.5 A
Design
Form factor:
- Rackmount/Tower
LED indicators:
- Yes
Product colour:
- Black
Rack capacity:
- 2U
Display
Display type:
- LCD
Response time:
- 0 ms
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 0 - 95%
Operating temperature (T-T):
- 0 - 45 °C
Packaging content
Manual:
- Yes
Rack mount kit:
- Yes
Packaging data
Cables included:
- Input power cable, Output power cable, USB cable
Performance
Number of batteries supported:
- 6
Power protection features:
- Overload
UPS topology:
- Double-conversion (Online)
Waveform:
- Pure sine

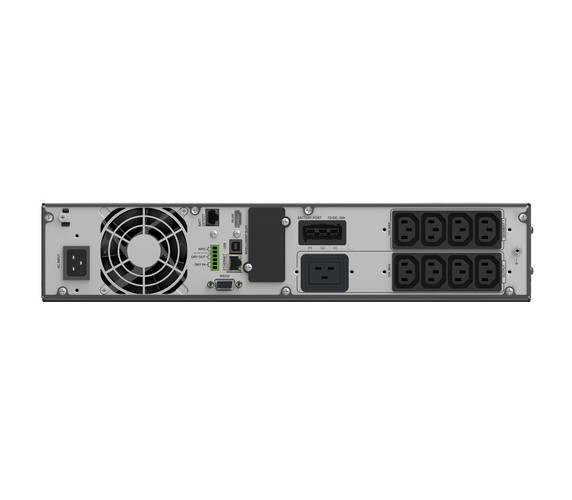

Ports & interfaces
Emergency Power Off (EPO) connector:
- Yes
Power plug:
- C20 coupler
RS-232 ports:
- 1
Serial interface:
- Yes
Serial interface type:
- RS-232
USB port:
- Yes
USB port type:
- USB Type-B
Power
AC outlet types:
- C13 coupler, C19 coupler
AC outlets quantity:
- 9 AC outlet(s)
Crest factor:
- 3:1
Emergency Power Off (EPO):
- Yes
Input frequency:
- 40/70 Hz
Input operation voltage (max):
- 300 V
Input operation voltage (min):
- 160 V
Output operation voltage (max):
- 240 V
Output operation voltage (min):
- 200 V
Output power:
- 3000 W
Output power capacity:
- 3 kVA
Output power factor:
- 1
Output voltage regulation:
- 1%
Technical details
Built-in fan:
- Yes
ECO mode:
- Yes
Weight & dimensions
Depth:
- 600 mm
Height:
- 85.5 mm
Package depth:
- 780 mm
Package height:
- 240 mm
Package weight:
- 30.4 kg
Package width:
- 580 mm
Weight:
- 26.2 kg
Width:
- 438 mm
