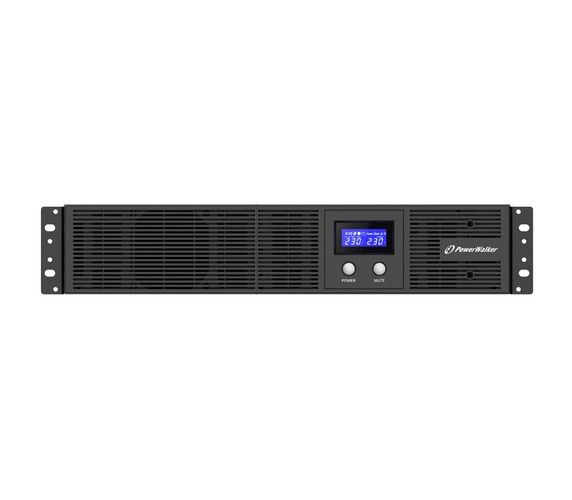

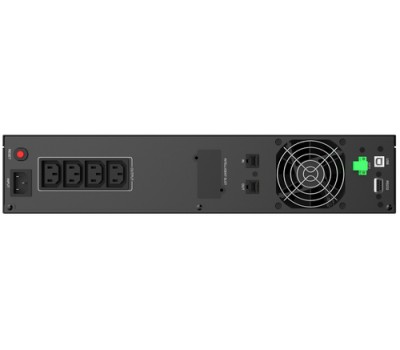

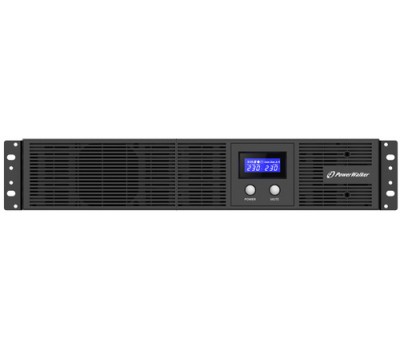

PowerWalker VI 2200 RLE uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1320 W 4 AC outlet(s) (10121100)
Περιγραφή
PowerWalker VI 1200-3000 RLE is a compact line-interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Noise level:
- 50 dB
Battery
Battery capacity:
- 9 Ah
Battery recharge time(90%):
- 4 h
Battery voltage:
- 12 V
Typical backup time at full load:
- 1.1 min
Typical backup time at half load:
- 7.1 min
Design
Product colour:
- Black
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Performance
Number of batteries supported:
- 2
Power protection features:
- Overload
UPS topology:
- Line-Interactive
Ports & interfaces
Power plug:
- C14 coupler
RS-232 ports:
- 1
USB port:
- Yes
Power
AC outlet types:
- C13 coupler
AC outlets quantity:
- 4 AC outlet(s)
Input frequency:
- 45/55 Hz
Input operation voltage (max):
- 290 V
Input operation voltage (min):
- 165 V
Output operation voltage (max):
- 230 V
Output operation voltage (min):
- 230 V
Output power:
- 1320 W
Output power capacity:
- 2.2 kVA
Output power factor:
- 0.6
Weight & dimensions
Depth:
- 430 mm
Height:
- 88 mm
Weight:
- 16.7 kg
Width:
- 438 mm
