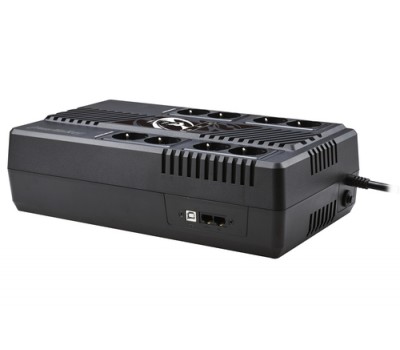

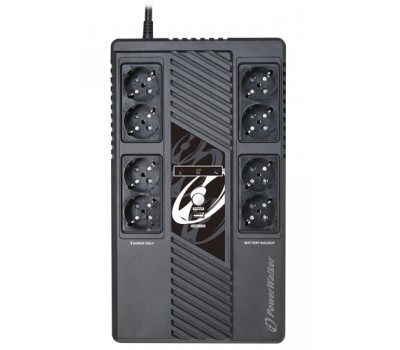

PowerWalker VI 600 MS uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 8 AC outlet(s) (10121160)
Περιγραφή
PowerWalker VI MS is a line-interactive UPS series with multiple sockets. 4 sockets with battery backup for critical loads and 4 sockets with bypass for non critical loads. The integrated AVR function ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).
The multi socket design makes the VI MS series especially suitable for home and office applications. The UPS can be used on top of a desk or it can be mounted to a wall. Applications include home office, workstations, NAS etc.
Furthermore, the USB charging port (2.1A) offers additional functionality, and the design allows access to the battery compartment via the back panel for easy battery replacement.
The multi socket design makes the VI MS series especially suitable for home and office applications. The UPS can be used on top of a desk or it can be mounted to a wall. Applications include home office, workstations, NAS etc.
Furthermore, the USB charging port (2.1A) offers additional functionality, and the design allows access to the battery compartment via the back panel for easy battery replacement.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Cooling type:
- Passive
Noise level:
- 40 dB
Surge protection features:
- Fax, Modem, Network, Telephone
Battery
Battery capacity:
- 7 Ah
Battery recharge time:
- 8 h
Battery voltage:
- 12 V
Charging current:
- 2.1 A
Typical backup time at full load:
- 0.1 min
Typical backup time at half load:
- 5.3 min
Design
Form factor:
- Compact
LED indicators:
- Yes
Product colour:
- Black
Display
Response time:
- 6 ms
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Performance
Automatic Voltage Regulation (AVR):
- Yes
Number of batteries supported:
- 1
Power protection features:
- Overcharge, Overdischarge, Overload
Surge protection:
- Yes
UPS topology:
- Line-Interactive
Waveform:
- Sine
Ports & interfaces
Ethernet LAN (RJ-45) ports:
- 2
Number of type F outputs:
- 8
RS-232 ports:
- 1
Serial interface:
- No
Serial ports quantity:
- 1
USB port:
- Yes
Power
AC outlet types:
- Type F
AC outlets quantity:
- 8 AC outlet(s)
Input frequency:
- 50/60 Hz
Input operation voltage (max):
- 280 V
Input operation voltage (min):
- 170 V
Output operation voltage (max):
- 230 V
Output operation voltage (min):
- 230 V
Output power:
- 360 W
Output power capacity:
- 0.6 kVA
Output power factor:
- 0.6
Output voltage regulation:
- 10%
Surge energy rating:
- 156 J
Technical details
Built-in fan:
- No
Power factor:
- 0.6
Weight & dimensions
Depth:
- 345 mm
Height:
- 100 mm
Package depth:
- 425 mm
Package height:
- 210 mm
Package weight:
- 4.7 kg
Package width:
- 146 mm
Weight:
- 4.4 kg
Width:
- 200 mm
