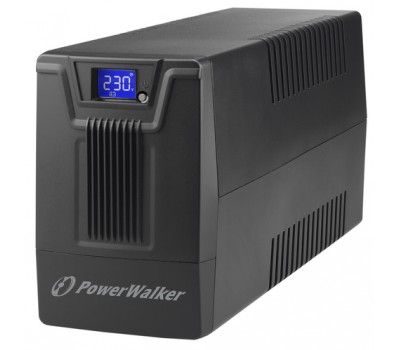

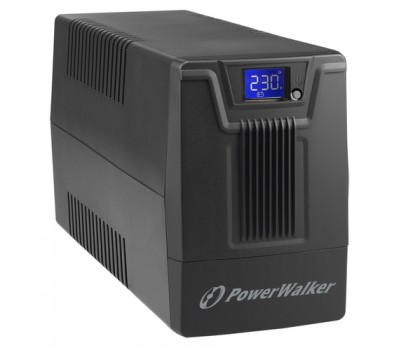

The PowerWalker VI 600-3000 SCL series offers a simple yet effective solution for PCs and other home applications. It is available with Type F (CEE 7/3), Type E (CEE 7/5) and Type G (BS 1363) outlets and features a microprocessor-controlled Automatic Voltage Regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers convenient touch panel which allows to scroll through most useful monitored parameters.
All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.
All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.
Χαρακτηριστικά
Κατασκευαστής:
PowerWalker
Noise level:
- 40 dB
Battery
Battery capacity:
- 9 Ah
Battery recharge time:
- 4 h
Battery voltage:
- 12 V
Number of battery cells:
- 1
Design
Form factor:
- Tower
Product colour:
- Black
Display
Display type:
- LCD
Response time:
- 6 ms
Logistics data
Harmonized System (HS) code:
- 85078000
Operational conditions
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Packaging content
Manual:
- Yes
Performance
Power protection features:
- Overdischarge, Overload
UPS topology:
- Line-Interactive
Waveform:
- Sine

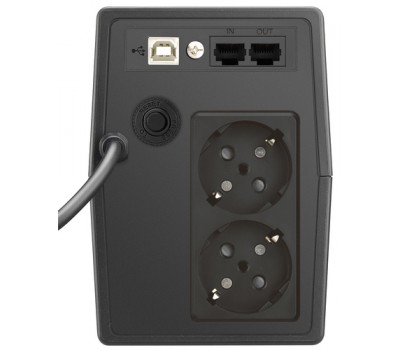

Ports & interfaces
Ethernet LAN (RJ-45) ports:
- 1
Modem (RJ-11) ports:
- 1
Number of type F outputs:
- 2
Serial interface:
- Yes
USB port:
- Yes
Power
AC outlet types:
- Type F
Efficiency:
- 90%
Input frequency:
- 50/60 Hz
Input operation voltage (max):
- 290 V
Input operation voltage (min):
- 162 V
Maximum current:
- 1 A
Output operation voltage (max):
- 230 V
Output operation voltage (min):
- 0 V
Output power:
- 480 W
Output power capacity:
- 0.8 kVA
Output power factor:
- 0.6
Technical details
Built-in fan:
- No
Output frequency:
- 50/60 Hz
Weight & dimensions
Depth:
- 300 mm
Height:
- 142 mm
Package depth:
- 344 mm
Package height:
- 220 mm
Package width:
- 140 mm
Weight:
- 5 kg
Width:
- 101 mm
